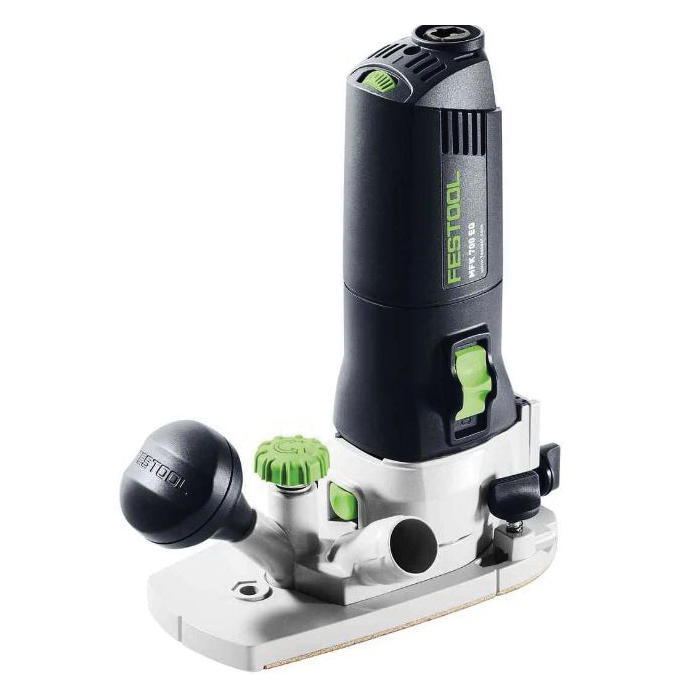

Corded Fixed Base Compact Router 1 HP, Festool, 1/4 and 5/16 in Collet

With its modular design and tool-less base changes, the MFK 700 Series 576239 Module Edge Router can easily transform from a vertical to a horizontal position with a few simple steps. Trim laminate and edge band or rout grooves for inlays easily with the lightweight and maneuverable MFK 700. Packed with features, this trim router saves you money by allowing you to use bearing-less bits when used with the attachable base feeler bearing. 1/256 in (1/10 mm) fine depth adjustments and exceptional dust extraction make this an ideal router for all of your light routing tasks. Due to the nature of the horizontal base design, there is a limit to the bit size for use in this configuration. Do not use a bit with a cutting length greater than 5/8 in (16 mm) and a shank length of 1-13/16 in (46 mm). For greatest range of adjustment a 3/4 in (19 mm) bit diameter is recommended. 6 A, 1-1/4 in Max Cutter Dia. 720 watts of power.

• Powerful 720 W (6 A) motor can easily tackle most trimming, profiling and routing applications with variable speed and detachable cord
• Vertical and horizontal extra-wide bases provides ample support area for maximum control especially near edges or on narrow stock
• Micro-adjustable depth control to 1/256 in (1/10 mm) with dual locking columns for precise routing control
• Threaded insert to accept template guides and phenolic resin baseplate to easily glide on a surface without marring the material to be routed
• Being able to confidently control the MFK 700 is made possible by several unique features, the integrated guide handle on the vertical and horizontal bases provide comfort and control while routing, the guide handle also acts as one of two mechanisms for locking the micro-adjustable depth of cut
• The horizontal base unit of the MFK 700 has a sliding dust cover, the cover prevents dust from exiting the top of the router when not using the supplied dust extraction hood
• Parallel edge guide accessory for guided fluting and grooved cuts
• Both the horizontal and vertical bases for the MFK 700 offer a large, stable bearing surface, in conjunction with the guide handle, these features improve your ability to control and guide the router
• MMC electronics improve cut performance and extend the life of the tool, delivering features such as soft start, constant speed under load and thermal and overload protection
• The MFK 700 has a center line indention on each side of the vertical base, this visual reference point allows you to align the center of the bit with the cut line, no more guessing where the center of the bit falls on your workpiece, used in conjunction with the parallel edge guide, easily position the router

• Owners/User Manual
