Fork Meter, Milwaukee, 1000 VAC/DC, 200 A AC, LCD Display, Functions: AC Current, AC/DC Voltage, Resistance - 1
Share Print

Fork Meter, Milwaukee, 1000 VAC/DC, 200 A AC, LCD Display, Functions: AC Current, AC/DC Voltage, Resistance

  • Model Number: 2205-20
  • Store SKU: loading

  • Fork Meter, Milwaukee, 1000 VAC/DC, 200 A AC, LCD Display, Functions: AC Current, AC/DC Voltage, Resistance

  • loading

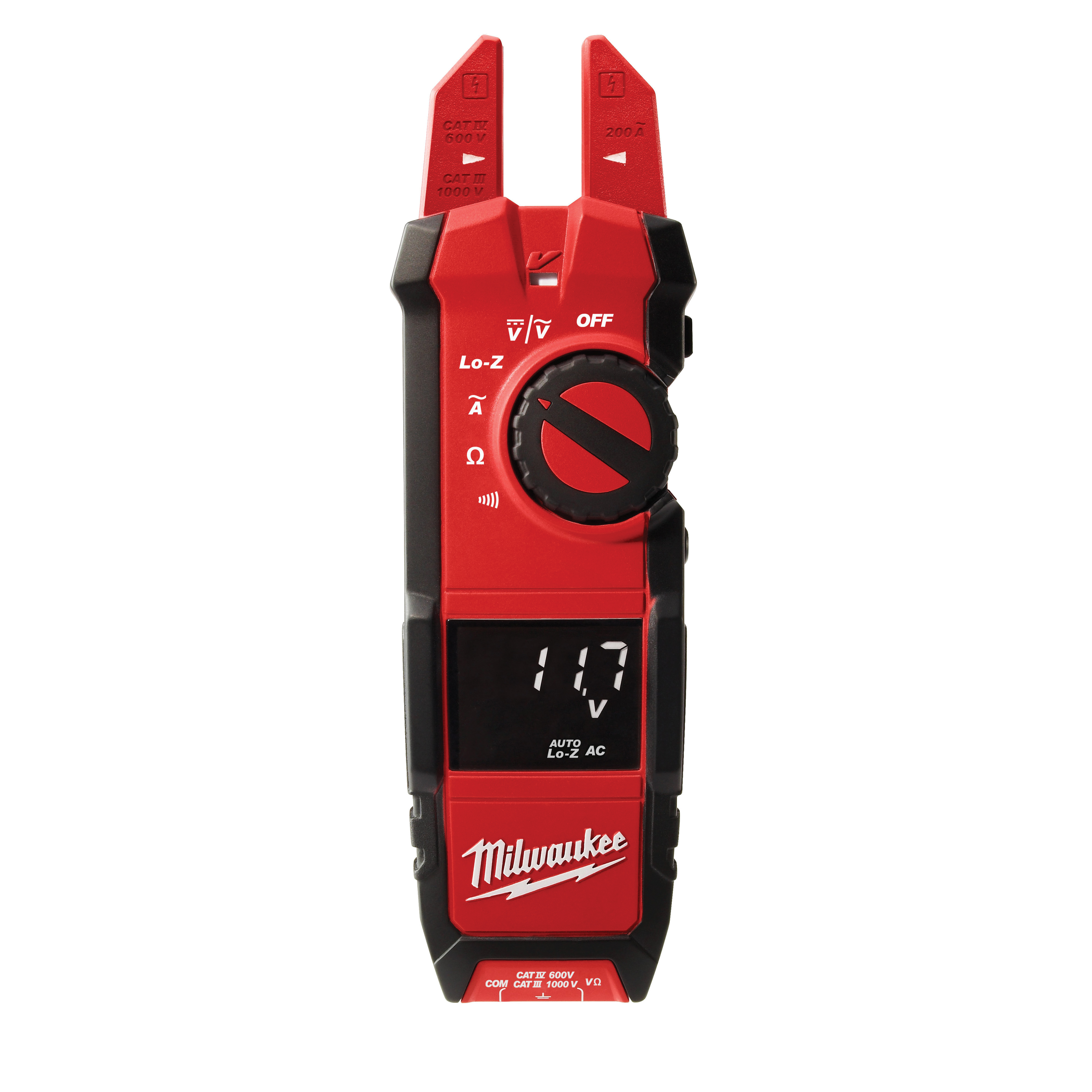

      Milwaukee 2205-20

      The Milwaukee fork meter is a heavy duty true RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in fork opening, high 200 a current range and a high contrast white on black display.

      Type    :    Fork Meter
      Display Type    :    LCD
      Measuring Functions    :    AC Current, AC/DC Voltage, Resistance
      Measuring Range    :    1000 VAC/DC, 200 A AC
      Accuracy    :    +/-2 %
      Dimensions    :    8 in L
      Power Source    :    AA Alkaline Battery
      Jaw Opening Size    :    0.63 in
      Includes    :    (1) Test Lead Set, (2) AA Batteries and (1) Manual
      Resistance    :    40 MOhm
      Temperature Rating    :    14 to 122 deg F
      • True RMS for accurate measurement in all applications
      • Built in voltage detector and LED work light
      • Rugged over molding increases durability and user grip
      • Lo-Z measurement to eliminate ghost voltage
      • High contrast, white on black display with backlight for easy reading
      • CAT IV 600 V/CAT III 1000 V for greater safety
