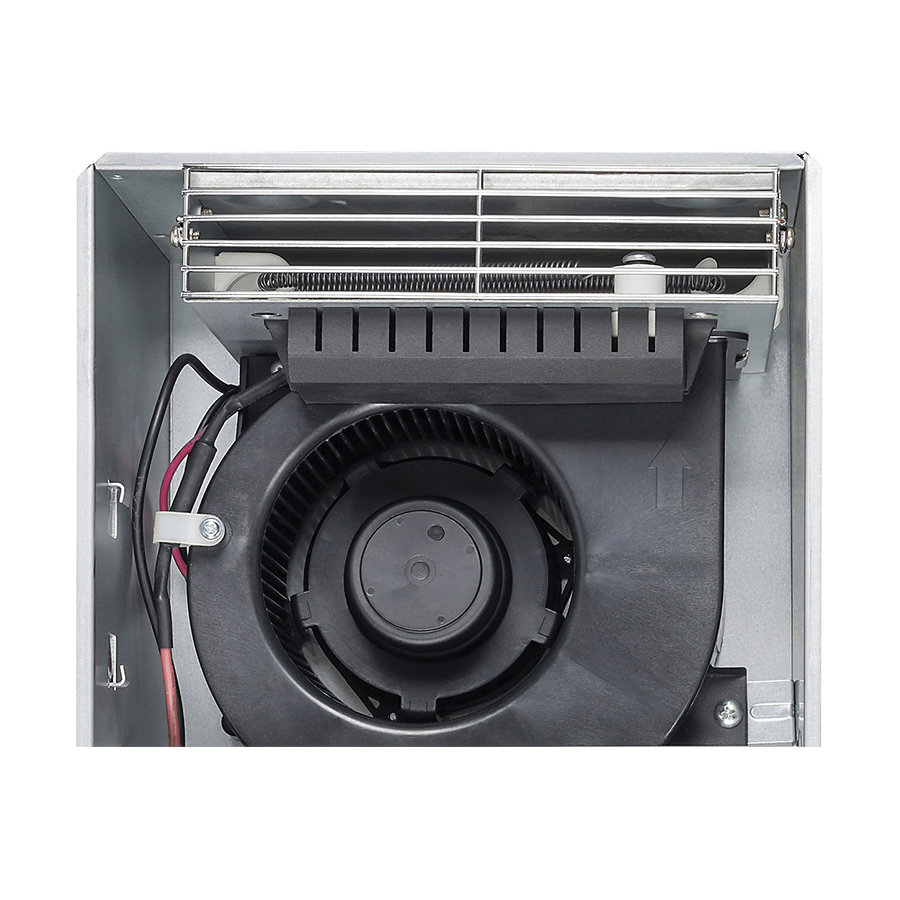

Ventilation fan shall be Delta Breez model 80LEDHEATER- ADJ ; brushless DC motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and 1.5 sones at 0.1 static pressure. Power consumption approximately 11.7 Watts with an efficiency rating approximately 7.0 CFM/Watt. Duct diameter no less than 4” Built-in thermostat to regulate temperature. Metal guard to help prevent user contact with heating wire. Heater element with 1300W and conforms to cUL safety standards. Heater module equipped with thermal cutoff fuse and thermostat.
| Voltage Rating | : | 120 V |
| Current Rating | : | 11 A |
| Wattage Rating | : | 11.7 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 80 cfm |
| Lamp Type | : | LED |
| Duct Size | : | 4 in |
| Length | : | 14-3/8 in |
| Width | : | 8-1/4 in |
| Height | : | 5-1/2 in |
| Grille Material | : | PBT |
| Lamp Wattage | : | 13 W |
| Housing Material | : | Steel |
