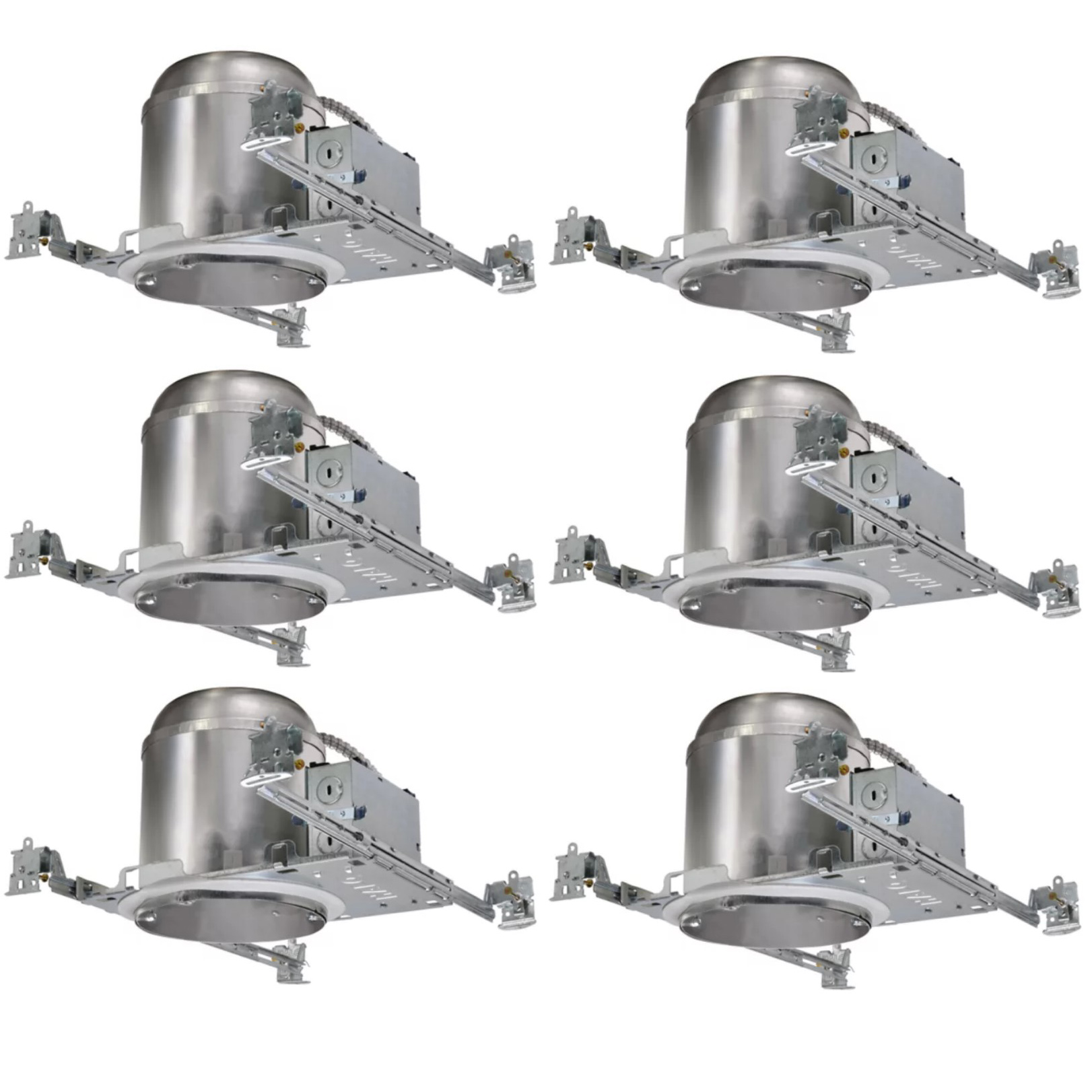

6-Pack New Construction Recessed Housing, Halo, 6 in Aperture, Airtight IC

The HALO H7ICAT kit includes 6 Air-Tite™ recessed housings and 6 white baffle recessed trims for both commercial and residential applications. Several features make this full-frame design optimal for installations where the housing will be in direct contact with insulation, and its Air-Tite™ design will also meet restricted air flow code requirements. The Got Nail!™ bar hanger bracket includes pre-installed nails that easily install in lumber and beams, safety and guidance system as well as automatic leveling. The Pass-N-Thru™ feature allows bars to cross-over for tool-less shortening in tight spaces less than 12 in. without removing from the plaster frame. The Slide-N-Side™ connectors allow non-metallic sheathed cable for both U.S. and Canada to be installed without tools and without removing knockouts. Lastly, the quick connect wiring connectors are included in junction box.

• Die-formed housing and plaster frame
• Housing may be removed from plaster frame for junction box access
• Aluminum construction for greater heat dissipation
• Sealed and gasketed for AIR-TITE™™ ready installation
• Designed for insulated ceilings in direct contact with insulation
• Rigid socket plate adjusts and locks without tools for various lamp sizes
• Socket plate and bracket may be removed when using socket supporting trims
• Housing adjusts in plaster frame to accommodate up to 1 in ceiling thickness
• Q-channel bars feature an unique inverted q interlocking channel for rigidity and stability
• Pass-N-Thru™ feature allows bars to cross-over for tool-less shortening in tight spaces less than 12 in without removing from the plaster frame
