Milwaukee 2217-20

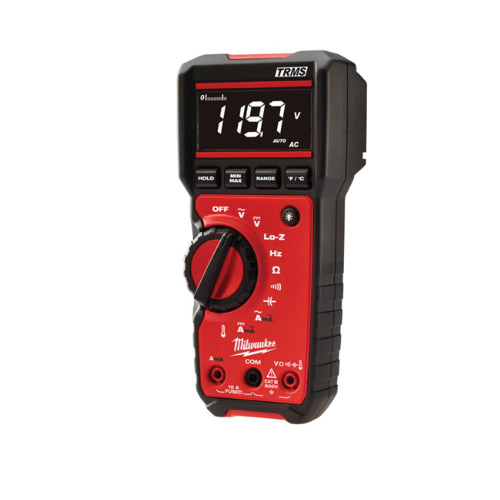

The Milwaukee® true RMS multimeter is a heavy-duty meter for professional residential, commercial and industrial applications. The perfect tool for professional electricians, the 2217-20 offers functionality users expect with features that make doing the job easier. The 2217-20 true RMS multimeter features a large white on black display for clearer readings, a slide rail system to add proprietary accessories and rugged over-molding for increased durability and grip. The meter is rated to CATIII 600 V and meets UL safety specifications required by electrical users.
| Type | : | Multimeter |
| Display Type | : | White on Black LCD |
| Measuring Functions | : | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
| Measuring Range | : | 600 VAC/VDC, 10 A, 10 to 50 Hz, 40 MOhm, 1000 uF |
| Dimensions | : | 6-1/2 in L |
| Power Source | : | Battery |
| Bandwidth Range | : | 10 to 50 Hz |
| Resistance | : | 40 mOhm |
| Temperature Rating | : | -40 to 752 deg F |
- True RMS for accurate measurement in all applications
- Rugged over-molding increases durability and user grip
- Auto range to millivolts and milliamp ranges
- Lo-Z measurement to eliminate ghost voltage
- High-contrast, white on black display with backlight for easy reading
