Adapter Plug In, Southwire, 2 -Pole, 15 A, 120 V, NEMA: NEMA 5-15P, 5-15R, Yellow - 1
Share Print

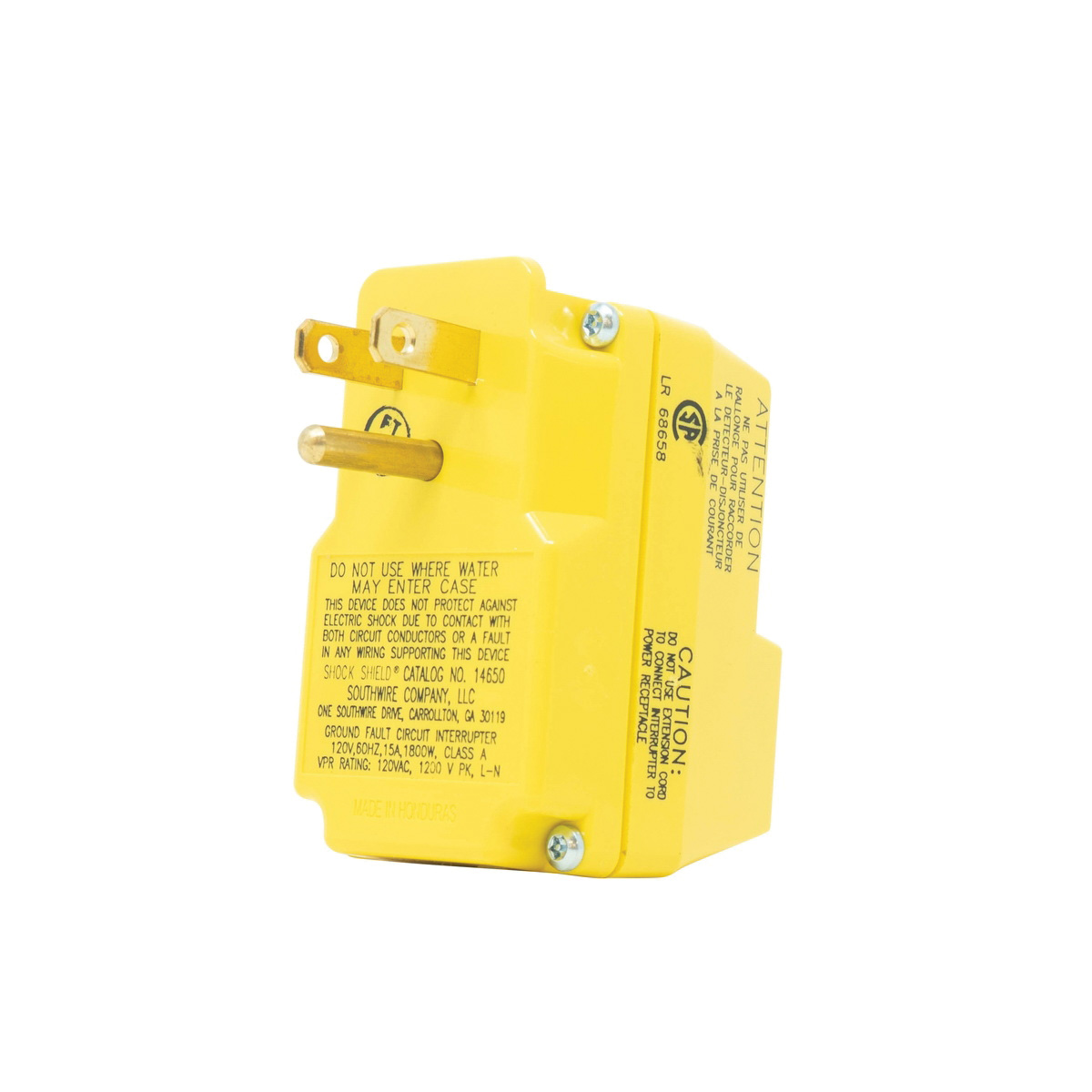

Adapter Plug In, Southwire, 2 -Pole, 15 A, 120 V, NEMA: NEMA 5-15P, 5-15R, Yellow

  • Model Number: 14650013-6
  • UPC: 024098902657
  • Store SKU: loading

  • Adapter Plug In, Southwire, 2 -Pole, 15 A, 120 V, NEMA: NEMA 5-15P, 5-15R, Yellow

  • loading

      SOUTHWIRE 14650013-6

      Provides GFCI and single mode surge protection with any appliance or tool used indoors. To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage. Available in yellow with button boots or white. Provides compliance with National Electric Code (NEC 2008) Article 590.6 for "Temporary Installations". Its small size (less than 3 in high and 2 in wide) makes it ideal for the toolbox and offers portable protection for institutional and residential applications.

      Type    :    Female
      Voltage Rating    :    120 V
      Current Rating    :    15 A
      Number of Wires    :    3
      NEMA Configuration    :    NEMA 5-15P, 5-15R
      Number of Poles    :    2
      Material    :    PVC
      Color    :    Yellow
      Dimensions    :    3 in H x 3 in W x 1.95 in D
      • Trip response time for ground fault and grounded neutral trip, less than 25 ms and grounded neutral trip
      • Radio frequency noise susceptibility, operates within normal limits with 0.5 V injected on power line 150 KHz to 230 MHz
      • Effect of 10 A turn DC shock fault trip, 5% maximum trip level variation on ground
      • 3000 operations minimum endurance
      • Overload current is 6X rated current
      • NEMA 5-15 P and R
      • 4 Ohm typical grounded neutral
