Jerry’s Home Improvement Center

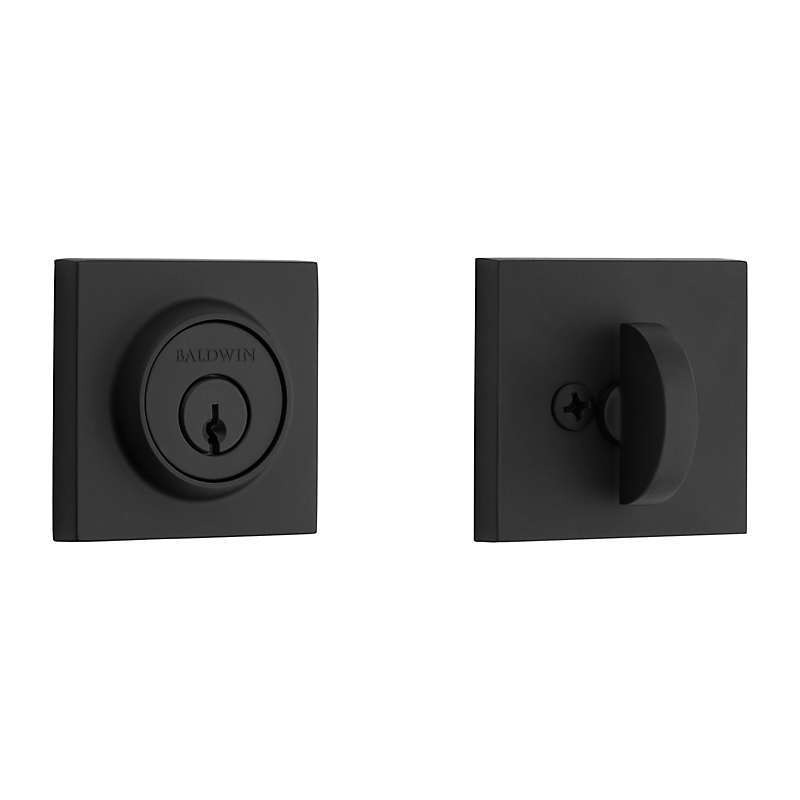

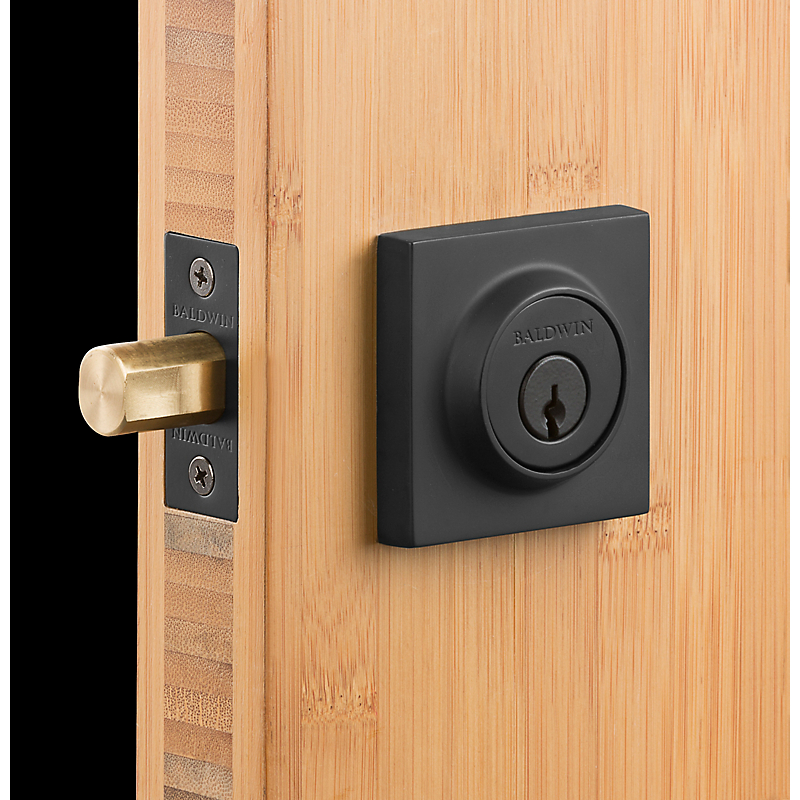

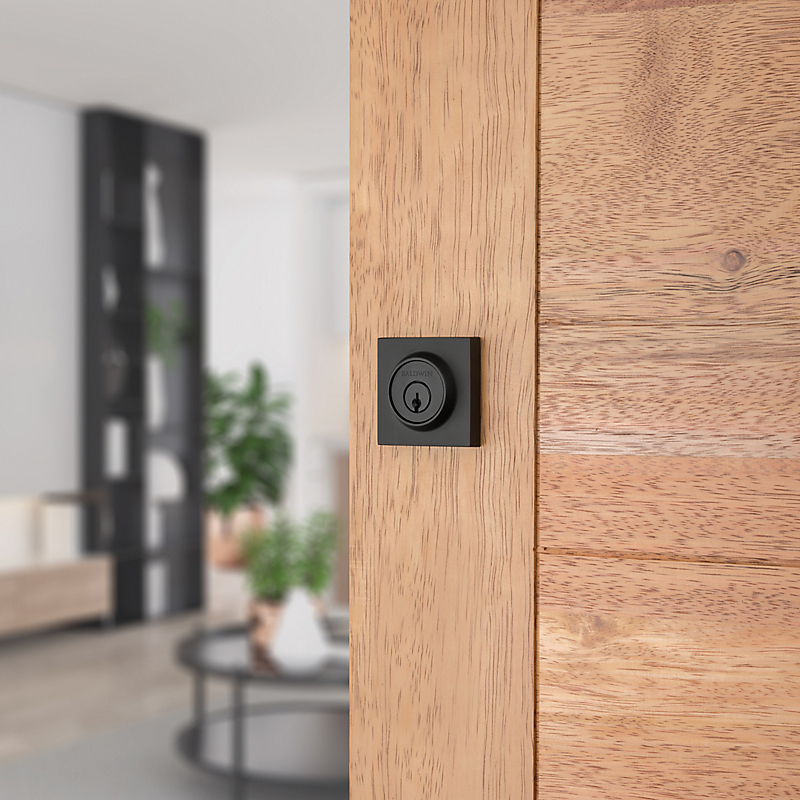

BALDWIN SC.CSD.190
Baldwin Reserve Series SC.CSD.190 Deadbolt, Design: Contemporary Square, Number of Cylinders: 1, Cylinder Type: 5-Pin, Keyway Type: C, Re-Key Technology: SmartKey, Strike Type: Square Corner, Strike Size: 1-1/8 x 2-3/4 in, Backset Size: 2-3/8, 2-3/4 in, Latch Type: Throw Bolt, Latch Housing Diameter: 7/8 in, Throw Length: 1 in, Cross Bore Diameter: 2-1/8 in, Edge Bore Diameter: 1 in, Projection Size: 3/4 in, Door Thickness: 1-3/4 to 2-1/2 in, Commercial/Residential: Residential, Brass/Steel, Satin Black, Dimensions: 2-9/16 in L x 2-9/16 in W
| Design | : | Contemporary Square |
| Material | : | Brass/Steel |
| Finish | : | Satin Black |
| Number of Cylinders | : | 1 |
| Cylinder Type | : | 5-Pin |
| Keyway Type | : | C |
| Re-Key Technology | : | SmartKey |
| Strike Type | : | Square Corner |
| Strike Size | : | 1-1/8 x 2-3/4 in |
| Backset Size | : | 2-3/8, 2-3/4 in |
| Latch Type | : | Throw Bolt |
| Latch Housing Diameter | : | 7/8 in |
| Throw Length | : | 1 in |
| Cross Bore Diameter | : | 2-1/8 in |
| Edge Bore Diameter | : | 1 in |
| Projection Size | : | 3/4 in |
| Door Thickness | : | 1-3/4 to 2-1/2 in |
| Commercial/Residential | : | Residential |
| Dimensions | : | 2-9/16 in L x 2-9/16 in W |
| Lock Type | : | Deadbolt |
- Solid forged brass construction
- Features 1 in solid brass throw bolt latch with hardened steel roll pin for additional strength and security
- Features low-profile cylinder projection
- Accommodates door thickness 1-3/4 to 2 in
- 2-1/8 in cross bore and 1 in edge bore for latch
