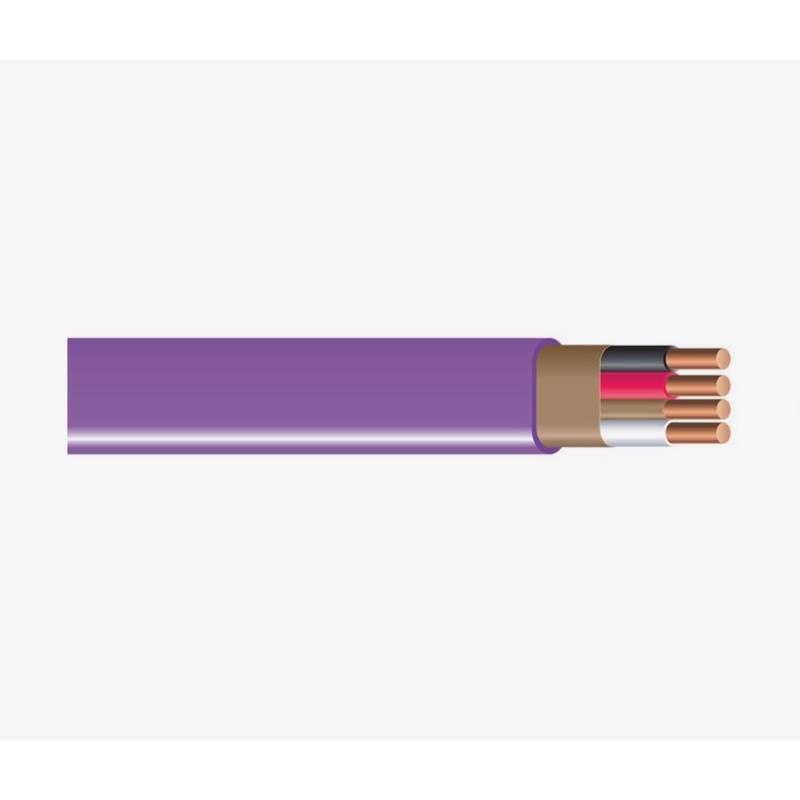

Nm-B Building Wire, Romex, 12 AWG 3-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, 100 ft L

  • Model Number: 63947628
  • UPC: 032886263590
  • Store SKU: loading
  • Nm-B Building Wire, Romex, 12 AWG 3-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, 100 ft L

  • loading

      Romex 63947628

      63947628 - Southwire® Romex ® Brand SIMpull® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.

      Type    :    NM-B
      Wire Size    :    12 AWG
      Number of Conductors    :    3
      Stranded/Solid    :    Solid
      Sheath Color    :    Yellow
      Strands per Conductor    :    1
      Length    :    100 ft
      Conductor Material    :    Copper
      Conductor Insulation    :    PVC
      Sheath Material    :    Nylon
      Voltage Rating    :    600 V
      Current Rating    :    20 A
      Operating Temperature    :    90 deg C
