Jerry’s Home Improvement Center

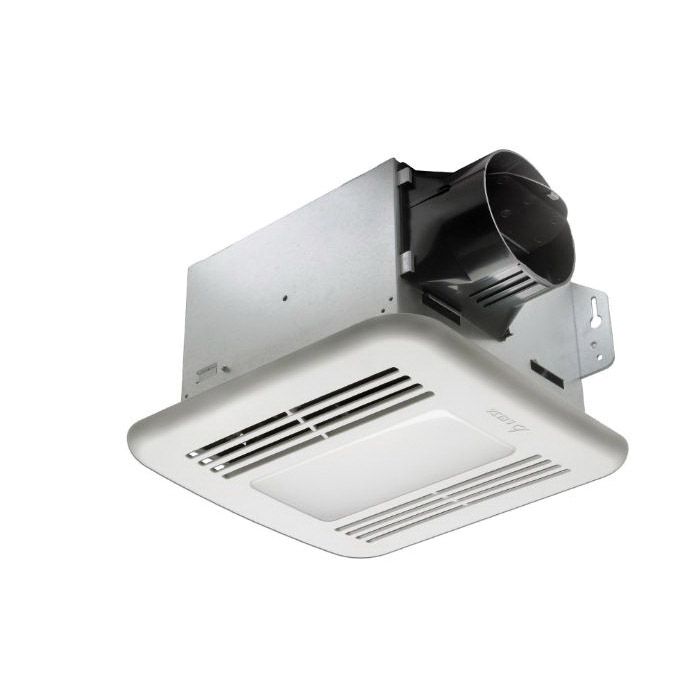

DELTA 100LED
Delta Breez model 100LED has been awarded Energy Star qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hr, airflow rating of 100 cfm and loudness rating of 1.5 sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI), power consumption of 13.6 W with efficiency rating of 7.3 cfm/W at 0.1 in static pressure, fan will feature LED indicator running light, motor lock protection and self-compensating motor speed for intended airflow ow when static pressure is encountered. UL and cUL listed for tub, shower enclosure when used with GFCI-protected branch circuit wiring.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.35 A |
| Wattage Rating | : | 13.6 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 100 cfm |
| Lamp Type | : | LED |
| Lamp Base | : | GU24 |
| Light Color | : | Green |
| Grill Shape | : | Round |
| Duct Size | : | 4 in |
| Material | : | Steel |
| Color | : | White |
| Sound Level | : | 1.5 sones |
| Installation Type | : | Ceiling |
| Dimensions | : | 5-3/4 in H x 8 in W x 8-1/2 in D |
| Includes | : | Hanger Bars |
- Energy Star® qualified with innovative brushless DC motor technology
- Main light output, 850 Lumens, 3000 K, 90 CRI for high color accuracy
- Dimmable LED life is 30,000 hr
- Green LED indicator light to show power is on
- Quiet operation at 1.5 sones, UL approved for ceiling mount installation
- Detachable 4 in Dia metal duct adapter
- Removable with permanently lubricated plug-in motor
- Built-in soft start function to increase bearings life
- Automatically powers off when impeller is locked abnormally
Instruction/Installation Manual
