Electric Garage Heater, King, 20.8/18 A, 240/208 V, 5 kW, 17 Btu Heating, 520 cfm, Gray

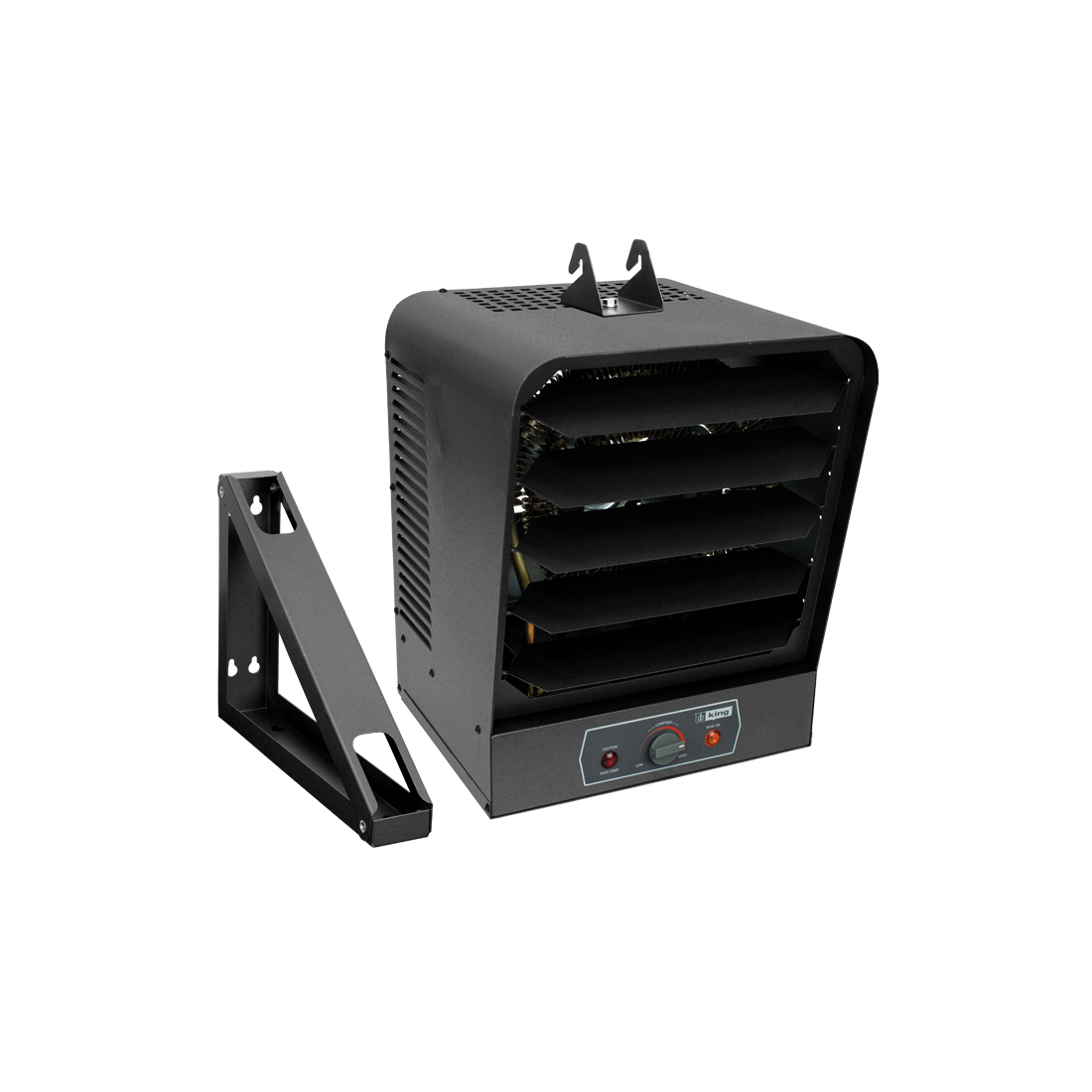

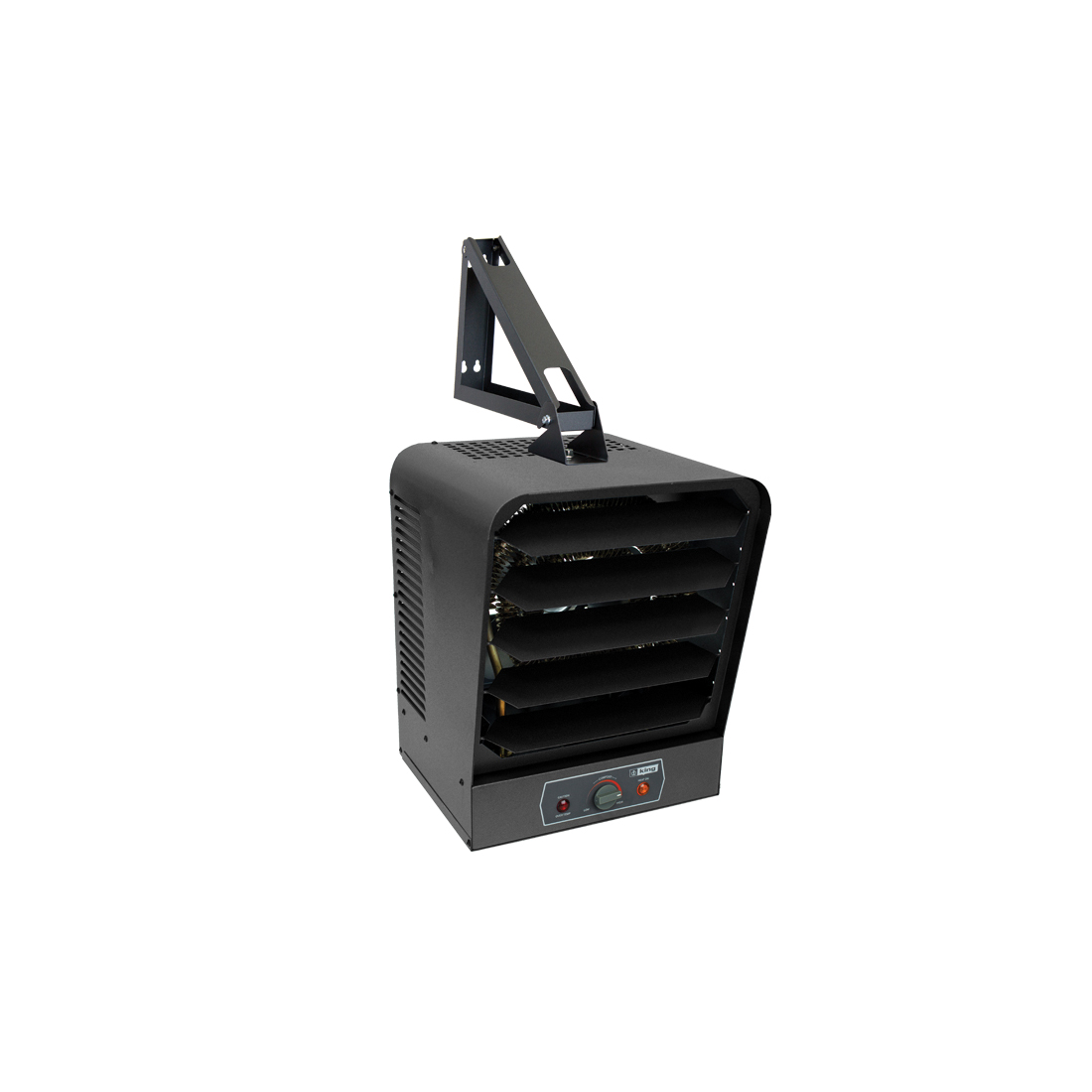

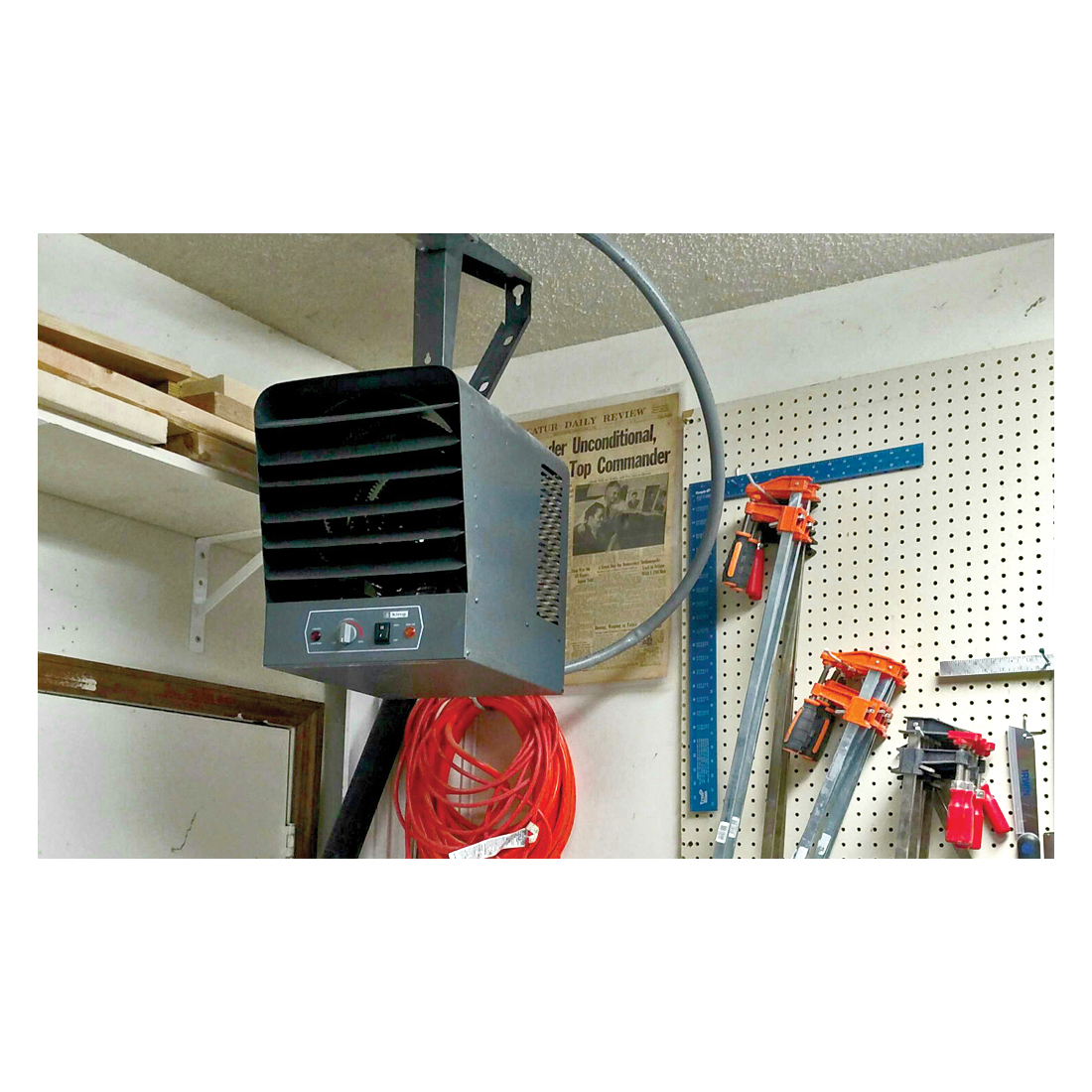

The GH compact heavy-duty unit heater is designed for use as primary or supplemental heat sources in large or exposed areas, including commercial stores, workshops, barns, storage shed and garages to prevent freezing. Spiral finned steel elements and high air volume (CFM) ensure efficient heat exchange producing cooler element operation, prolonging heater life. By combining the highest quality components with a dynamically balanced fan blade, the GH unit heater will provide years of trouble-free service. Includes both a power on indicating light and a red caution light that comes on if the heater stops due to the over temperature limit tripping. A universal wall/ceiling bracket provides for quick and simple installation. The built-in thermostat turns the heater on and off to maintain the desired room temperature or a remote wall thermostat can be used. The heater is prewired to easily convert from the built-in thermostat to a wall mounted line voltage thermostat. The heater can also be controlled by purchasing a transformer relay to operate a remote 24 V wall thermostat.

• Built-in thermostat
• Adjustable louvers to direct air
• Power-on and over temperature indicating lights

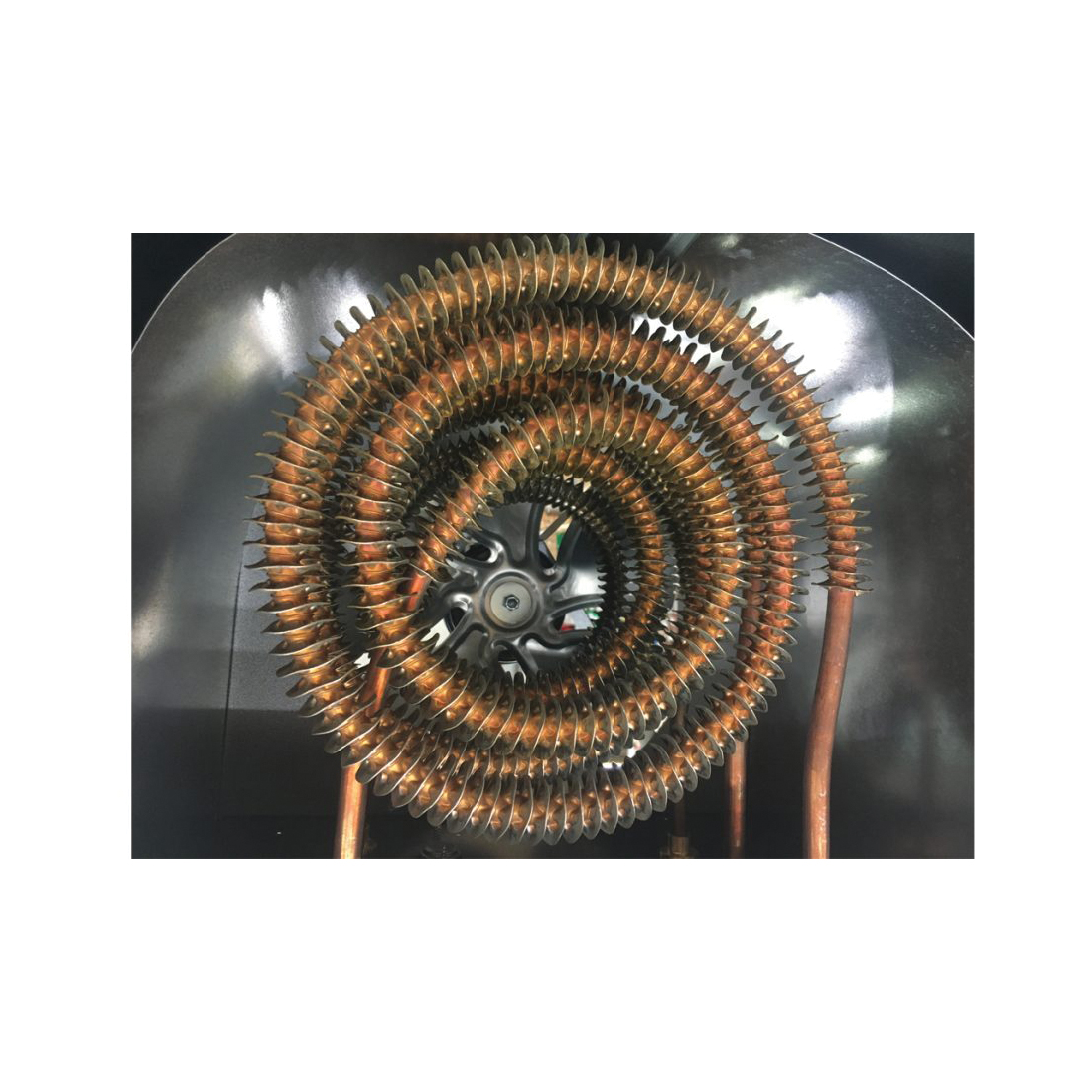

• High mass steel fin heat exchanger
• Patented Smart Limit Protection®
• Permanent lubricated unit bearing motor
• All exterior and interior metal enclosure parts are made from 20 ga electro galvanized steel with a rust inhibiting baked enamel finish, rounded corners give it an attractive modern appearance

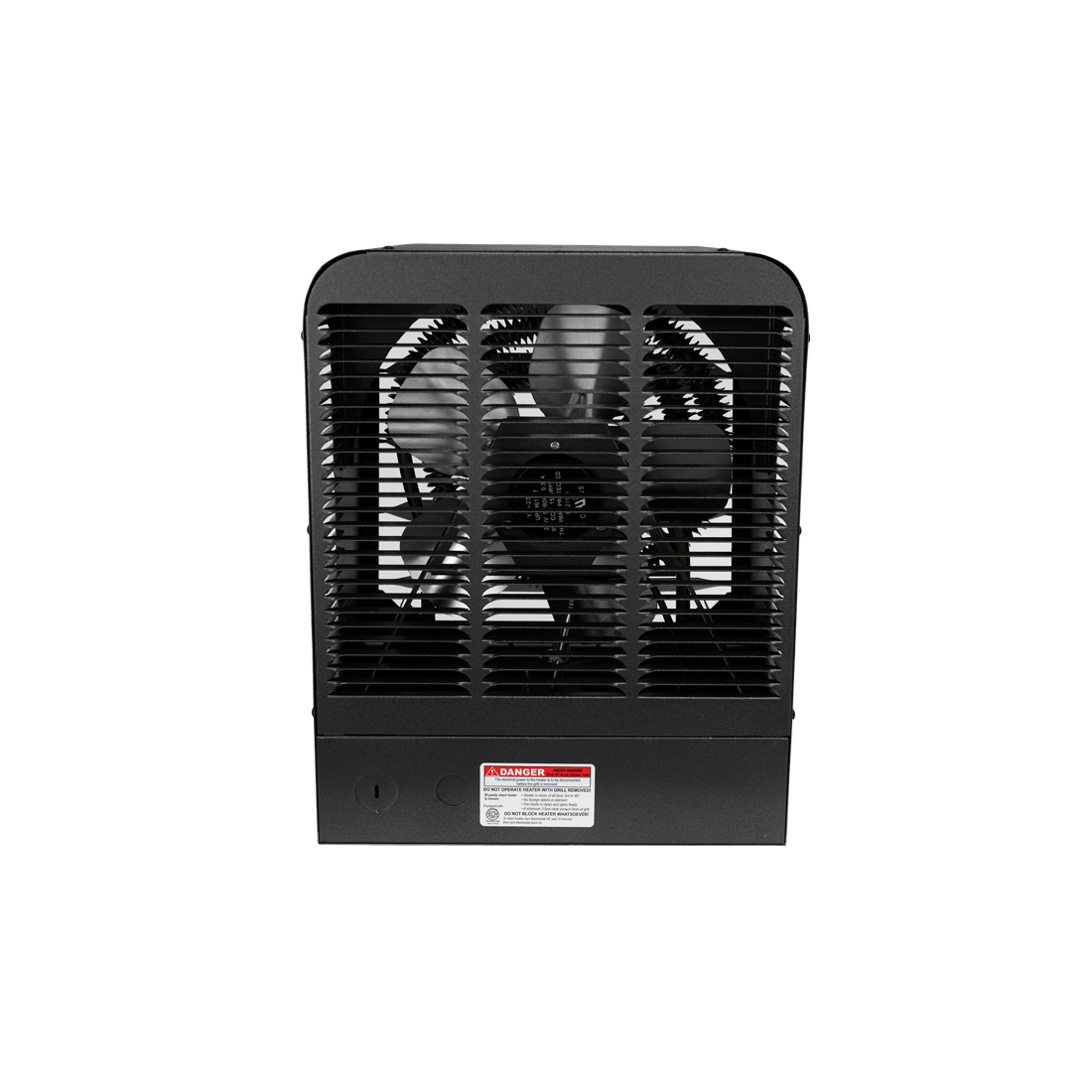

• Axial flow type fan mounted directly to the motor shaft for maximum efficiency
• Made in the USA

• Instruction/Installation Manual
• Specification Sheet
