Jerry’s Home Improvement Center
JET 708599

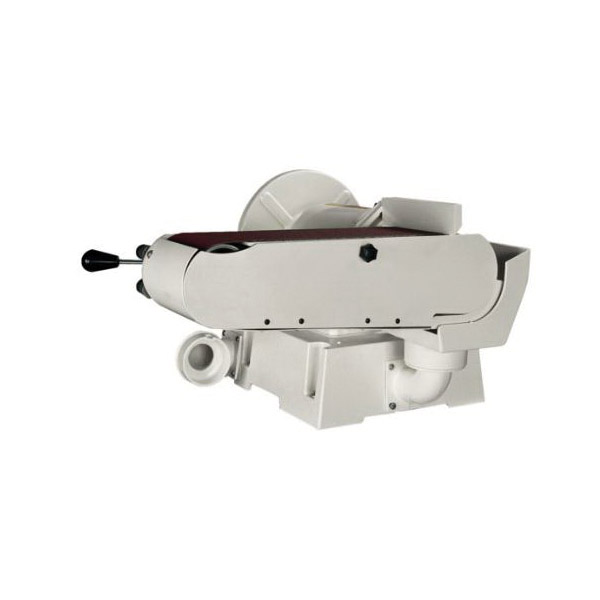

The JET JSG-6DC sander combines a 12 disc and a 6 x 48 in belt to provide raw industrial 1.5 hp sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick release belt tension lever and a quick lock dust cover for the disc. The built-in handle allows for easy portability around the workshop. Wire as 110V or 220V.
| Type | : | Belt/Disc Sander |
| Voltage Rating | : | 115/230 V |
| Current Rating | : | 12/6 A |
| HP Rating | : | 1.5 hp |
| Belt Size | : | 6 x 48 in |
| Belt Speed | : | 2500 rpm |
| Belt Table Tilt Angle | : | 20 deg Up, 45 deg Down |
| Belt Table Length | : | 12-1/2 in |
| Belt Table Width | : | 7 in |
| Disc Diameter | : | 12 in |
| Disc Speed | : | 1725 rpm |
| Dimensions | : | 28.9 in L x 27.5 in W x 20 in H |
| Disc Table Tilt Angle | : | 25 deg Up, 45 deg Down |
| Disc Table Length | : | 16-1/2 in |
| Disc Table Width | : | 10 in |
- Two precision-ground cast iron tables have positive stops at 90 and 45 deg for sanding flat pieces or mitered angles, allows belt sander to be used vertically, horizontally or anywhere in-between
- Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
- Graphite covered steel platen runs cooler increasing machine and belt life
- Specially designed belt guard allows full use of the 6 in belt width and length
- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Quick-release belt tension lever makes belt changes fast and easy
- Quick-lock dust cover allows fast disc changes
- Single 4 in dust port on the back of the base collects dust effectively from both the belt and disc
- Powerful 1-1/2 hp motor easily handles the toughest sanding operations
- Built-in handles for easier portability
