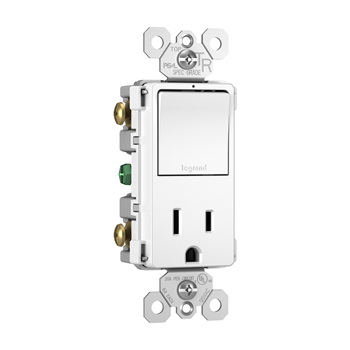

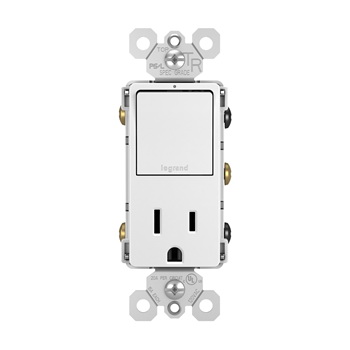

Radiant Outlet with Switch, Pass & Seymour, 1 -Pole, 15 A, 120, 125 V, 3-Way, NEMA: NEMA 5-15R, White - 1
Share Print

Radiant Outlet with Switch, Pass & Seymour, 1 -Pole, 15 A, 120, 125 V, 3-Way, NEMA: NEMA 5-15R, White

  • Model Number: RCD38TRW
  • Store SKU: loading

  • Radiant Outlet with Switch, Pass & Seymour, 1 -Pole, 15 A, 120, 125 V, 3-Way, NEMA: NEMA 5-15R, White

  • loading

      Pass & Seymour RCD38TRW

      The Radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes.

      Color    :    White
      Voltage Rating    :    120/125 V
      Current Rating    :    15 A
      Number of Poles    :    1
      Wiring Type    :    Back and Side
      Wire Size    :    14 to 10 AWG
      Contact Configuration    :    3-Way
      NEMA Configuration    :    NEMA 5-15R
      Material    :    Synthetic
      Dimensions    :    3.81 in H x 1.29 in W x 1.43 in D
      Function Type    :    3-Way
      • Unique "up/down" switches match the look and feel of radiant paddle switches
      • Easy to use oversized main switch for primary load
      • Impact-resistant face and body
      • Full wraparound metal strap, commercial grade with lock-in tabs
      • All screws are tri-drive
      • External screw pressure plate back and side wired, accepts #12 and #14 AWG
      • Single pole/three way switches can be wired as a single pole or three way switch
      • Dual mechanical shutter system helps prevent insertion of foreign objects
