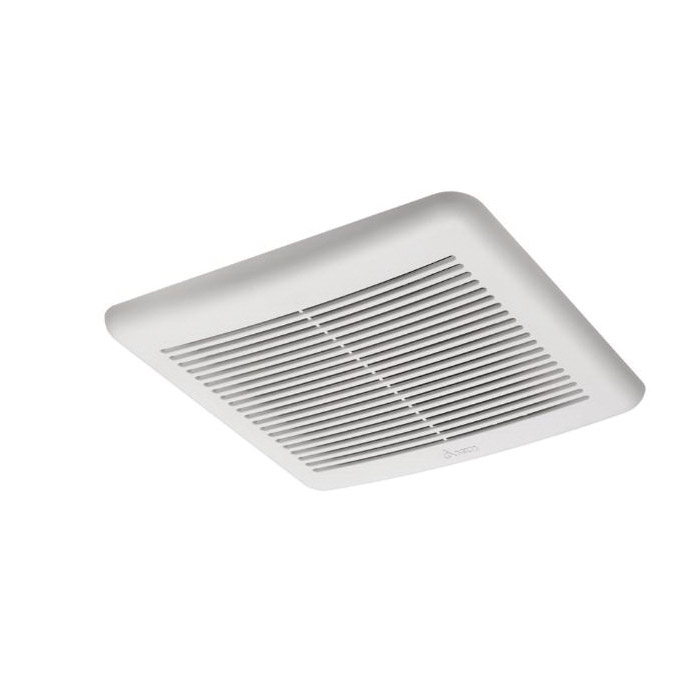

DELTA 50F
Super low-profile. Super low energy consumption. Weighing in at less than 5 lb the powerful yet compact Delta BreezSlim sets the bar for performance in the popular small fan size of 7-1/2 x 7-1/4 x 4 in. Operating at just one-sone, this quiet fan features Delta's super reliable DC brushless motor and a modern grille design. Perfect for retrofit into an existing space or for ceiling mount or wall mount installation (UL listed for both) into your next multifamily or single-family project. BreezSlim breaks the mold of the everyday bathroom exhaust fan.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.18 A |
| Wattage Rating | : | 6.4 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 50 cfm |
| Number of Speeds | : | 1 |
| Grille Length | : | 10-3/4 in |
| Grille Width | : | 9-3/8 in |
| Length | : | 7-1/2 in |
| Material | : | Steel |
| Width | : | 7-1/4 in |
| Color | : | White |
| Height | : | 4 in |
| Grille Material | : | ABS |
| Mounting Type | : | Ceiling, Wall |
- BreezSlim 50F is the only 3 in duct vent fan model that can meet Energy Star® most efficient criteria in the market
- Energy Star® qualified with innovative brushless DC motor technology
- UL approved for ceiling or wall mount installation
- The only 7-1/2 x 7-1/4 in small size bath fan in the market
- Compact housing for easy retrofit and replacement of older bath fans
- Ultra low power consumption at 6.4 W
- Removable with permanently lubricated plug-in motor
- Built-in soft start function to increase bearings life
- Automatically powers off when impeller is locked abnormally
- Detachable 3 in Dia duct adapter
Instruction/Installation Manual
