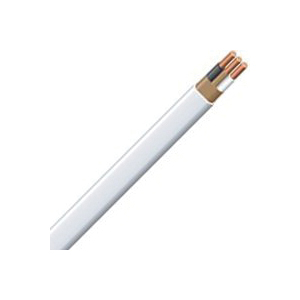

NM-B Building Wire, 14 AWG 2-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, White, 25 ft L - 1
Share Print

NM-B Building Wire, 14 AWG 2-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, White, 25 ft L

  • Model Number: 28827421
  • UPC: 098359263023
  • Store SKU: loading

  • NM-B Building Wire, 14 AWG 2-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, White, 25 ft L

  • loading

          • loading
    Romex® 28827421

    28827421 - Building Wire, NM-B, 14 AWG Wire, 25 ft Length, 2 Conductors, Strands per Conductor: 1, Copper Conductor, PVC Conductor Insulation, Solid, Nylon Sheath, White Sheath, 600 V, 15 A, 90 deg C Operating

    Type    :    NM-B
    Wire Size    :    14 AWG
    Number of Conductors    :    2
    Stranded/Solid    :    Solid
    Sheath Color    :    White
    Strands per Conductor    :    1
    Length    :    25 ft
    Conductor Material    :    Copper
    Conductor Insulation    :    PVC
    Sheath Material    :    Nylon
    Sheath Diameter    :    0.372 in
    Voltage Rating    :    600 V
    Current Rating    :    15 A
    Resistance    :    2.631 Ohm
    Bend Radius    :    0.8 in
    Operating Temperature    :    90 deg C
    • SIMpull jacket designed for easier pulling
    • Color-coded jacket
