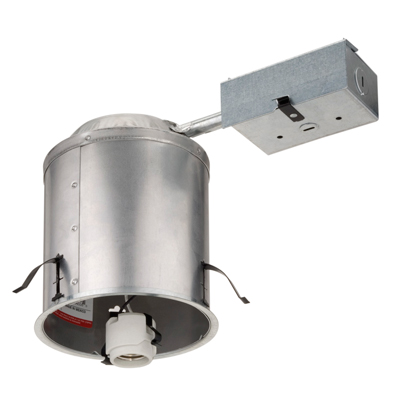

LITHONIA LIGHTING L3R HSG R6
Recessed incandescent housings for 2 x 8 and 2 x 6 new construction applications. Approved for direct burial in insulation and all ceiling and wiring types. L3R air-tight, galvanized steel pan with aluminum can and junction box with four built-in clamps and ground wire. Rated for 90 deg C. Factory-installed captive bar hangers that span up to 24 oc and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.
| Recessed Can Diameter | : | 4 in |
| Construction Type | : | Remodel |
| Ceiling Opening Size | : | 4-1/4 in |
| Material | : | Aluminum/Steel |
| Ceiling Type | : | T-Bar |
| Mounting Type | : | Recessed |
| Dimensions | : | 10-1/8 in L x 5-3/4 in W x 5-1/2 in H |
| Suitable for | : | 1-1/2 in Thick Ceilings |
| Includes | : | (6) Incandescent Housings |
Instruction/Installation Manual
