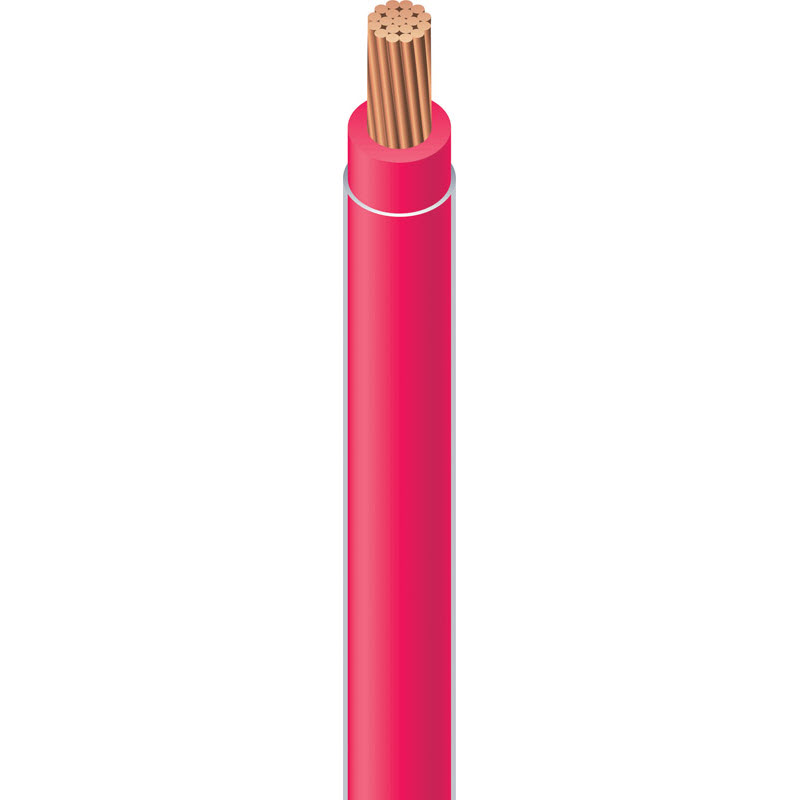

THHN Building Wire, 10 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Red, 500 ft L - 1
Share Print

THHN Building Wire, 10 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Red, 500 ft L

  • Model Number: 22975701
  • UPC: 098359230209
  • Store SKU: loading

  • THHN Building Wire, 10 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Red, 500 ft L

  • loading

          • loading
    Southwire® 22975701

    22975701 - Building Wire, THHN, 10 AWG Wire, 500 ft Length, 1 Conductors, Strands per Conductor: 19, Copper Conductor, PVC Conductor Insulation, Stranded, Nylon Sheath, Red Sheath, 0.161 in Sheath Diameter, 600 V, 30 A, 194 deg F Operating

    Wire Size    :    10 AWG
    Number of Conductors    :    1
    Stranded/Solid    :    Stranded
    Sheath Color    :    Red
    Strands per Conductor    :    19
    Length    :    500 ft
    Conductor Material    :    Copper
    Conductor Insulation    :    PVC
    Sheath Material    :    Nylon
    Sheath Diameter    :    0.161 in
    Voltage Rating    :    600 V
    Current Rating    :    30 A
    Operating Temperature    :    194 deg F
