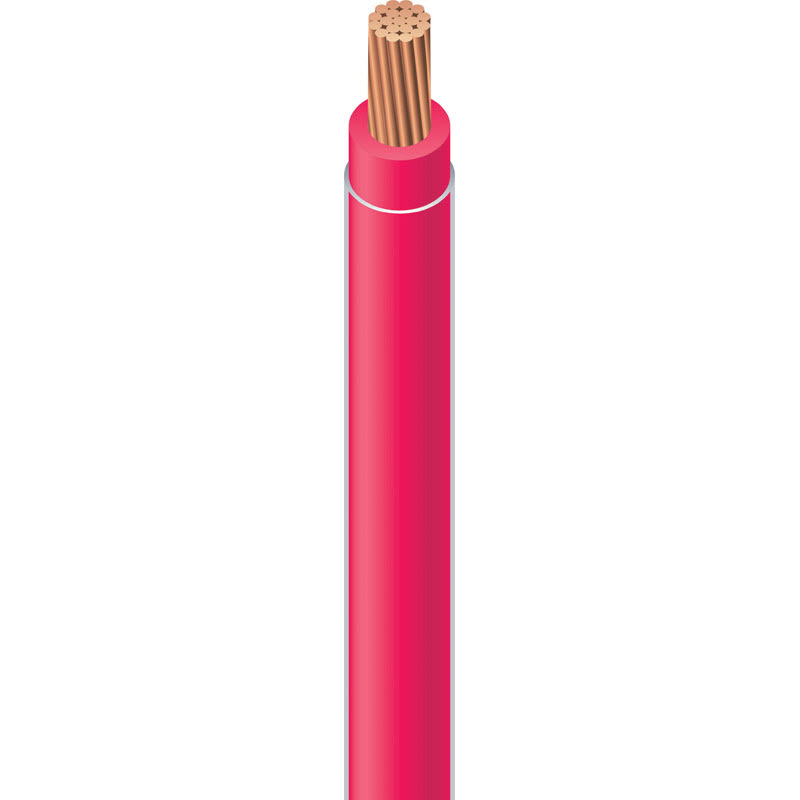

THHN Building Wire, 12 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Red, 500 ft L - 1
Share Print

THHN Building Wire, 12 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Red, 500 ft L

  • Model Number: 11587358
  • UPC: 032886845529
  • Store SKU: loading

  • THHN Building Wire, 12 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Red, 500 ft L

  • loading

          • loading
    Southwire® 11587358

    11587358 - Building Wire, THHN, 12 AWG Wire, 500 ft Length, 1 Conductors, Strands per Conductor: 19, Copper Conductor, PVC Conductor Insulation, Solid, Nylon Sheath, Red Sheath, 128 mil Sheath Diameter, 600 V, 20 A, 90 deg C Operating

    Type    :    THHN
    Wire Size    :    12 AWG
    Number of Conductors    :    1
    Stranded/Solid    :    Solid
    Sheath Color    :    Black
    Strands per Conductor    :    19
    Length    :    500 ft
    Conductor Material    :    Copper
    Conductor Insulation    :    PVC
    Sheath Material    :    Nylon
    Sheath Diameter    :    128 mil
    Voltage Rating    :    600 V
    Current Rating    :    20 A
    Operating Temperature    :    90 deg C
