Jerry’s Home Improvement Center

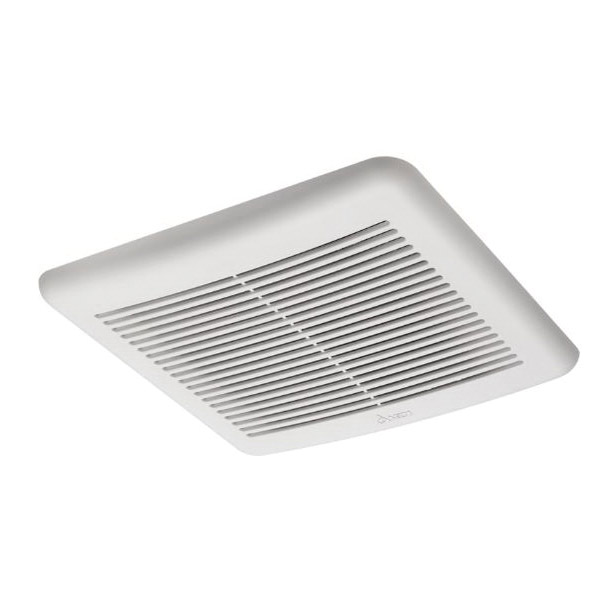

DELTA 70HS
Super low-profile. Super low energy consumption. Weighing in at less than 5 lb the powerful yet compact Delta BreezSlim sets the bar for performance in the popular small fan size of 7 1/2 x 7 1/4 x 4 in. Operating at two-sones, this quiet fan features Delta's super reliable DC brushless motor, an LED indicator light so you know it's running. Perfect for retrofit into an existing space for ceiling mount or wall mount installation (UL listed for both) into your next multifamily or single-family project. BreezSlim breaks the mold of the everyday bathroom exhaust fan.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.29 A |
| Wattage Rating | : | 5.8 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 70 cfm |
| Number of Speeds | : | 1 |
| Grille Length | : | 10-3/4 in |
| Grille Width | : | 9-3/8 in |
| Length | : | 7-1/2 in |
| Material | : | Steel |
| Width | : | 7-1/4 in |
| Color | : | White |
| Height | : | 4 in |
| Grille Material | : | ABS |
| Mounting Type | : | Ceiling, Wall |
- Energy Star® qualified with innovative brushless DC motor technology
- In humidity sensing mode, the fan will start when humidity is above 60% and will stop when humidity is below 60% automatically
- Compact housing for easy retrofit and replacement of older bath fans
- UL approved for ceiling or wall mount installation
- Allows fan to operate in full speed mode or humidity control mode by cycling on, off switch

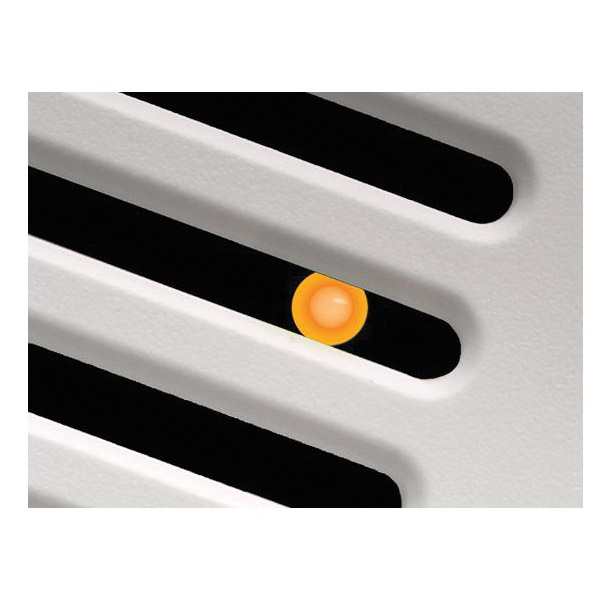

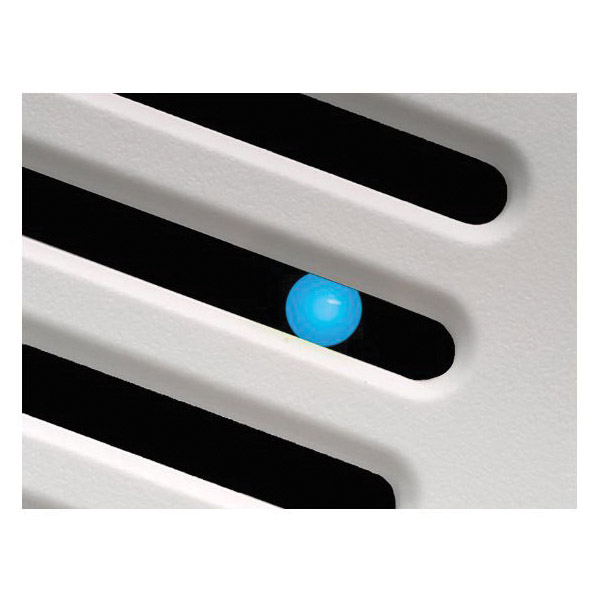

- Blue and amber LED indicator light to show humidity sensor and full speed modes
- Removable with permanently lubricated plug-in motor
- Built-in soft start function to increase bearings life
- Automatically powers off when impeller is locked abnormally
- Detachable 3 in Dia duct adapter
Instruction/Installation Manual
