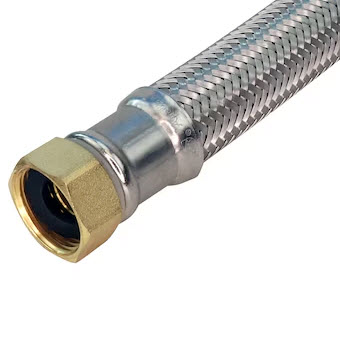

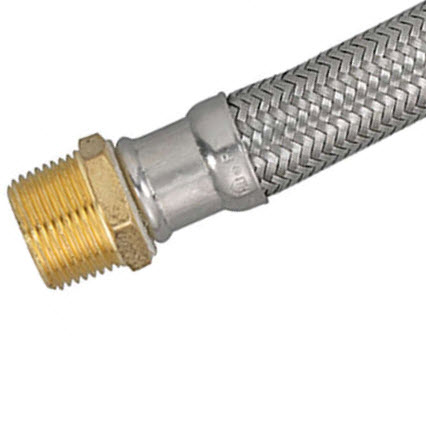

Water Heater Supply Line, Brasscraft, Braided Stainless Steel, 3/4in FIP each X 3/4in D MIP X 12in - 1
Share Print

Water Heater Supply Line, Brasscraft, Braided Stainless Steel, 3/4in FIP each X 3/4in D MIP X 12in

  • Model Number: BWB20-12
  • UPC: 026613965437
  • Store SKU: loading

  • Water Heater Supply Line, Brasscraft, Braided Stainless Steel, 3/4in FIP each X 3/4in D MIP X 12in

  • loading

      BrassCraft BWB20-12

      his stainless steel braided supply line starts with an extruded core of PVC tubing. The core is then over-braided with polyester yarn and another layer of PVC material. The final layer consists of stainless steel braid to form a strong, yet flexible supply line.

      Type    :    Connector
      Connection Type    :    MIP x FIP
      Nominal Size    :    3/4 in
      Diameter    :    0.57 in
      Material    :    EPDM/Polymer
      Pressure Rating    :    125 psi
      Temperature Rating    :    40 to 160 deg F
      Includes    :    (10) Connectors
      Length    :    12 in
      • Longer connector nuts with a greater number of thread-to-thread contact for a better sealer to lined nipples
      • Bends freely, without kinking or crimping, installation is easier, especially in cramped quarters
      • Superior corrosion resistance against harsh household cleaning chemicals
      • Less torque to seal, rubber washer is easier to install on rough nipple surfaces
      • No-lead certified
