Jerry’s Home Improvement Center

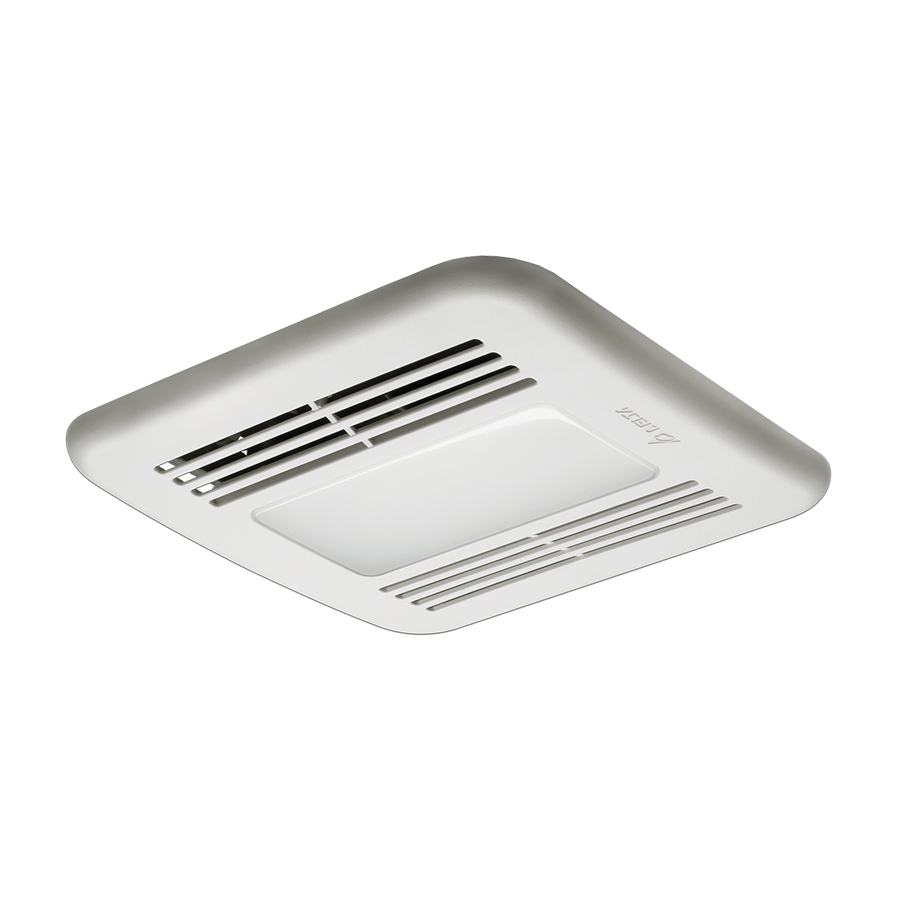

DELTA 80HLED
Ventilation fan shall be Delta Breez model 80HLED Energy Star® qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hrs, airflow rating of 80 cfm and loudness rating of 0.8 Sones at 0.1 in static pressure as certified by the Home Ventilating Institute (HVI), power consumption of 11 W with efficiency rating of 7.2 cfm/W at 0.1 in static pressure, fan will feature LED indicator running light, motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.33 A |
| Wattage Rating | : | 11 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 80 cfm |
| Lamp Type | : | LED |
| Duct Size | : | 4 in |
| Material | : | Steel |
| Color | : | White |
| Finish | : | Galvanized |
| Dimensions | : | 10-3/4 in L x 10-3/4 in W x 5-3/4 in H |
| Includes | : | Humidity Sensor, Hanger Bars |
- 30,000 hrs, 850 Lumens, 3000 K, 90 CRI for high color accuracy LED light
- Allows fan to operate in full speed mode or humidity control mode by cycling On/Off switch
- For humidity mode, the fan will automatically start when the humidity level in the room is above 60%
- Blue and amber LED indicator lights to show humidity sensor and full speed modes
Instruction/Installation Manual
