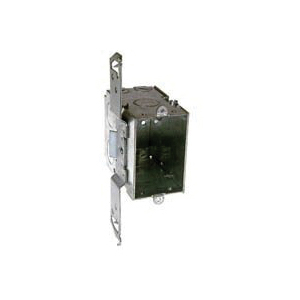

Switch Box with TS Bracket, Orbit, 1-Gang, Seven 1/2 in Knockouts, Galvanized Steel, 18 cu-in

TS Bracket, 3" x 2", 1-Gang, Gangable, Square Corner Switch Box with Non-Metallic Sheathed Cable Clamps, Drawn, Metallic. Depth: 3-1/2". Side Knockouts: (6) 1/2" & (4) Priouts. Bottom Knockouts: (1) 1/2". Cubic Inches: 18.0". Set Back: 1/2". Gangable switch boxes offer the option of constructing a box to hold two or more devices Reference the Box Selection section in the front of this catalog for complete description of bracket types and features.

• With pre-assembled 7 in solid cu #12AWG Pigtail and 10-32 ground screw
• Removable side cover for multi-gang applications
• NM clamp for non-metallic sheathed cables with ground
• FB Bracket for offset mounting on flat side of stud or joist
