Joist Hanger, Simpson Strong-Tie, Top-Flange, to Hang: 2x10, Galvanized Steel - 1
Share Print

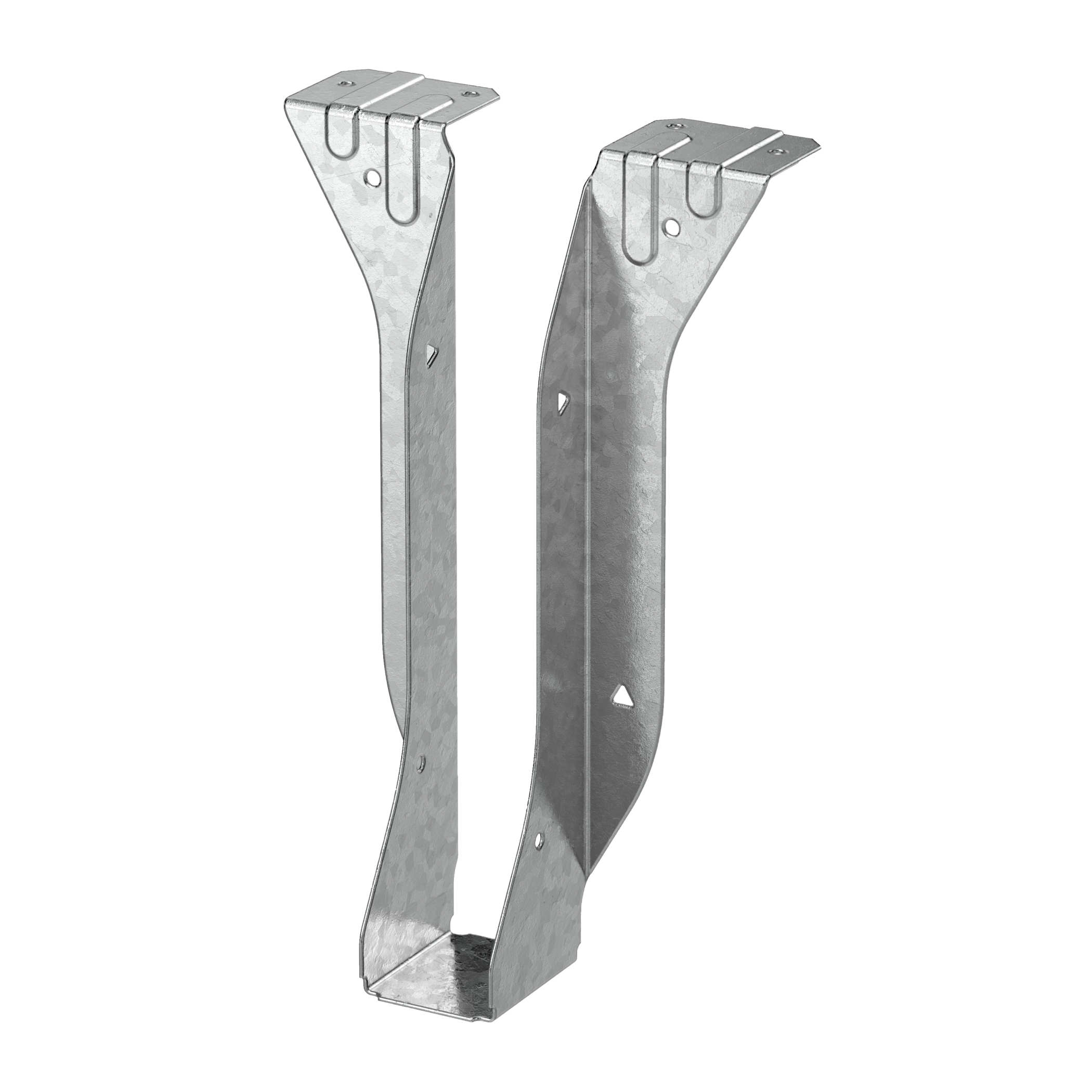

Joist Hanger, Simpson Strong-Tie, Top-Flange, to Hang: 2x10, Galvanized Steel

  • Model Number: JB210A
  • UPC: 707392170471
  • Store SKU: loading

  • Joist Hanger, Simpson Strong-Tie, Top-Flange, to Hang: 2x10, Galvanized Steel

  • loading

      Simpson Strong-Tie JB210A

      The JBA is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The JBA also features optional triangular nail holes for maximum nailing to increase allowable loads.

      Size    :    2 x 10 in
      Type    :    Joist Hangers Top
      Fastener Type    :    Nail
      Material    :    Steel
      Finish    :    Galvanized/Zinc
      Height    :    9-3/16 in
      Width    :    1-9/16 in
      Depth    :    2 in
      • Unique two-level embossment provides added stiffness to the top-flange
      • Nail locations that enable effective use with nailers
      • Engineered with increased uplift loads for earthquake or high-wind loading
      • Made from 18 ga steel
      • Galvanized (G90) for extra corrosion resistance
