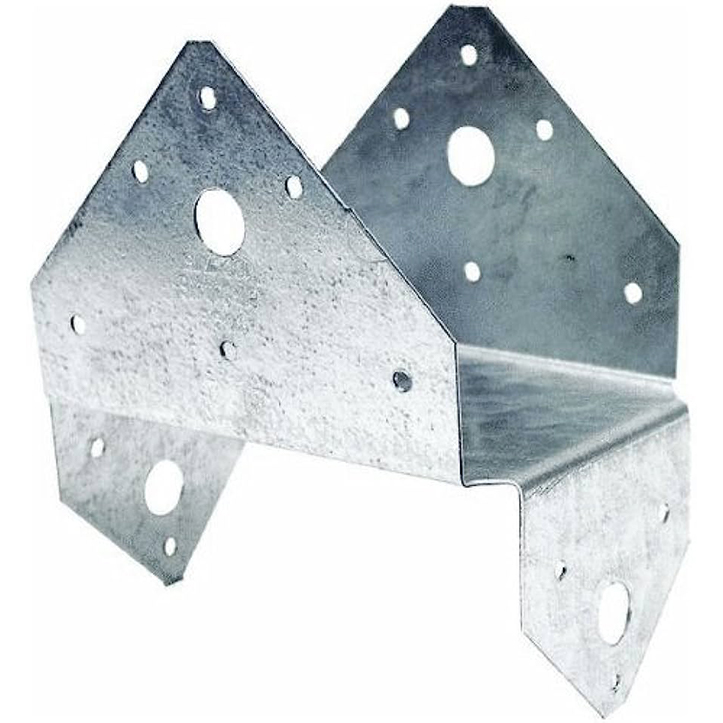

Post Cap/Base Combo, Simpson Strong-Tie, to Hang 4x6, 3-9/16 x 5-1/2 x 3-1/2 in H, 18 ga ZMAX Galvanized Steel - 1
Share Print

Post Cap/Base Combo, Simpson Strong-Tie, to Hang 4x6, 3-9/16 x 5-1/2 x 3-1/2 in H, 18 ga ZMAX Galvanized Steel

  • Model Number: BC46Z
  • UPC: 707392527404
  • Store SKU: loading

  • Post Cap/Base Combo, Simpson Strong-Tie, to Hang 4x6, 3-9/16 x 5-1/2 x 3-1/2 in H, 18 ga ZMAX Galvanized Steel

  • loading

          • loading
    Simpson Strong-Tie BC46Z

    The BCS allows for the connection of two 2X's to a 4X post or three 2X's to a 6X post. Double-shear nailing between beam and post gives added strength. The BC Series offers dual-purpose post cap/base for light cap or base connections.

    Post/Joist Size    :    4 x 6 in
    Type    :    Cap & Base
    Weight Capacity    :    946 lb Uplift, 1000 lb Lateral
    Material    :    Steel
    Length    :    4-7/8 x 2-7/8 in
    Finish    :    ZMAX
    Width    :    3-9/16 x 5-1/2 in
    Height    :    3-1/2 x 2-1/2 in
