NM-B Building Wire, 10 AWG 2-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, Orange, 100 ft L - 1
Share Print

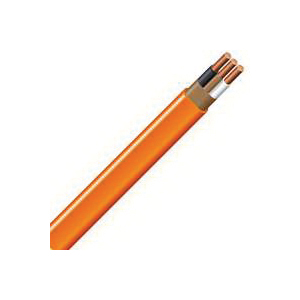

NM-B Building Wire, 10 AWG 2-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, Orange, 100 ft L

  • Model Number: 28829028
  • UPC: 098359263146
  • Store SKU: loading

  • NM-B Building Wire, 10 AWG 2-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, Orange, 100 ft L

  • loading

          • loading
    Romex® 28829028

    1054931 - Building Wire, NM-B, 10 AWG Wire, 100 ft Length, 2 Conductors, Strands per Conductor: 1, Copper Conductor, PVC Conductor Insulation, Nylon Sheath, Orange Sheath, 600 V, 30 A, 90 deg C Operating

    Type    :    NM-B
    Wire Size    :    10 AWG
    Number of Conductors    :    2
    Stranded/Solid    :    Solid
    Sheath Color    :    Orange
    Strands per Conductor    :    1
    Length    :    100 ft
    Conductor Material    :    Copper
    Conductor Insulation    :    PVC
    Sheath Material    :    Nylon
    Sheath Diameter    :    0.505 x 0.218 in
    Bedding Material    :    Nylon
    Voltage Rating    :    600 V
    Current Rating    :    30 A
    Resistance    :    1.04 Ohm
    Bend Radius    :    1.2 in
    Operating Temperature    :    90 deg C
    • SIMpull jacket designed for easier pulling
    • Color-coded jacket
