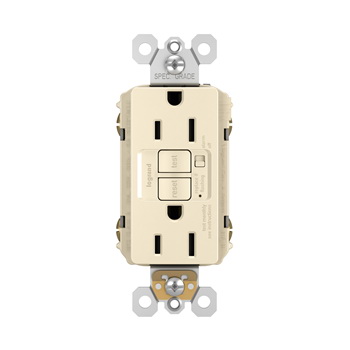

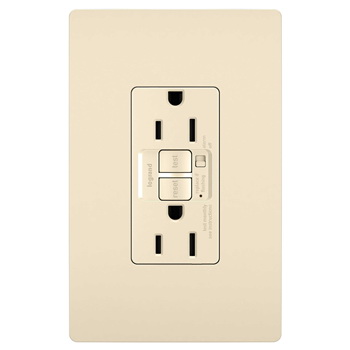

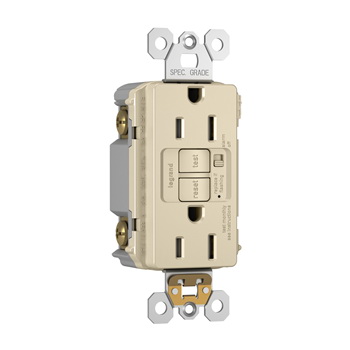

Radiant GFCI Outlet, Pass & Seymour, 125 V, 15 A, NEMA: NEMA 5-15R, Back and Side Wiring, Light Almond

The Radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI receptacles installed in the living space.

• Audible Alarm alerts when a trip occurs, alarm rated at 60 dB at 10 ft and can be turned on/off
• Rated as 1.5 hp motor control switch
• Patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® tamper-resistant requirements
• Equipped with proven SafeLock protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected
• Thinner than competitors GFCI receptacles leaves more room for wires in the box
• Feed-thru wiring configuration allows GFCI to protect downstream receptacles
• Prevents line-load reversal miswire no power to the face or downstream receptacles if wired incorrectly
• Dual-direction test and reset button colors match the device face
