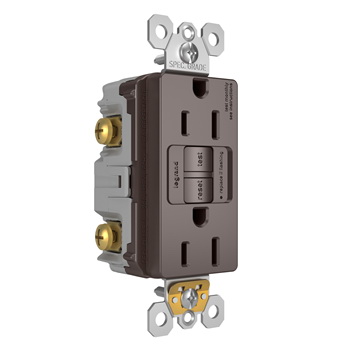

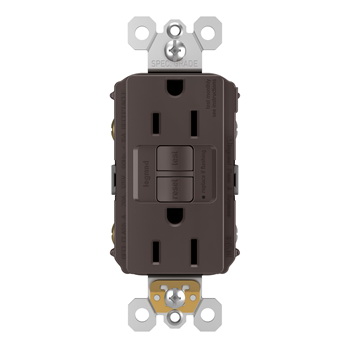

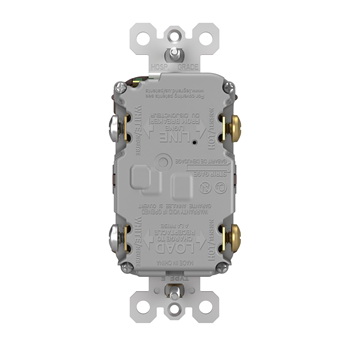

Pass & Seymour 1597
The Radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI receptacles installed in the living space.
| Color | : | Brown |
| Type | : | Duplex |
| Voltage Rating | : | 125 V |
| Current Rating | : | 15 A |
| Number of Poles | : | 2 |
| Short Circuit Current Rating | : | 10 kA |
| Grounding Type | : | Self-Grounded |
| Number of Wires | : | 3 |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Back and Side |
| NEMA Rating | : | NEMA 5-15R |
| Operating Temperature | : | -35 to 66 deg C |
| Material | : | Nylon/Thermoplastic |
| Mounting Type | : | Wall |
| Dimensions | : | 4.19 in H x 1.62 in W x 1.13 in D |
- New external back wire pressure plates
- New posted terminal screws for faster installation
- Conducts an automatic test every three seconds, ensuring it's always ready to protect
- Patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® tamper-resistant requirements
- Redesigned side wire cavity improves speed of side wire installation
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire no power to the face or downstream receptacles if wired incorrectly
