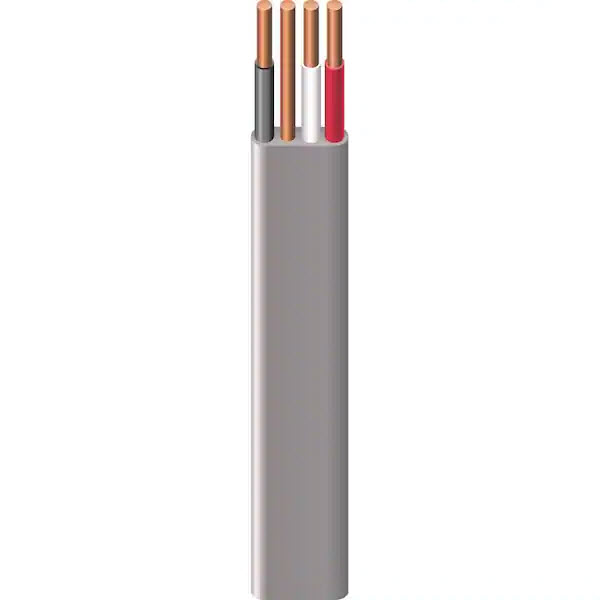

Uf-B Building Wire, Romex, 14 AWG 3-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, Gray, 250 ft L - 1
Share Print

Uf-B Building Wire, Romex, 14 AWG 3-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, Gray, 250 ft L

  • Model Number: 14/3UF-WGX250
  • UPC: 032886166501
  • Store SKU: loading

  • Uf-B Building Wire, Romex, 14 AWG 3-Conductor Solid Copper Wire With Ground, Sheathed Cable, PVC Insulation, Gray, 250 ft L

  • loading

          • loading
    Romex 14/3UF-WGX250

    13057555 - Type THHN insulation, rated 90 deg C, 600 V. Gray PVC jacket. For applications of direct burial, dwellings not exceeding 3 floors above grade, underground feeder to outdoor lighting or apparatus, exposed or concealed wiring in damp, moist, wet, dry and corrosive locations, general branch circuit wiring and new wiring or replacement wiring. Flame-retardant, moisture, fungus and corrosion-resistant. Sunlight-resistant jacket. JC-30B Federal specification, ASTM B-3, ASTM B-8 and NY state DOS 16120-880923-2002. UL listed.

    Type    :    UF-B
    Wire Size    :    14 AWG
    Number of Conductors    :    3
    Stranded/Solid    :    Solid
    Sheath Color    :    Gray
    Strands per Conductor    :    1 Conductor, 1 Ground Wire
    Length    :    250 ft
    Conductor Material    :    Copper
    Conductor Insulation    :    PVC
    Sheath Material    :    Nylon
    Voltage Rating    :    600 V
    Current Rating    :    15 A
    Operating Temperature    :    90 deg C
    • Southwire Type UF-B cable is manufactured as a 2 or 3 conductor cable, with or without a ground wire
    • Copper conductors are annealed (soft) copper, solid or compressed stranded
    • Phase conductors are PVC insulated, nylon jacketed, color coded for identification purposes
    • Jacketed with sunlight, moisture and fungus-resistant gray PVC
    • Underground feeder and branch circuit cable
