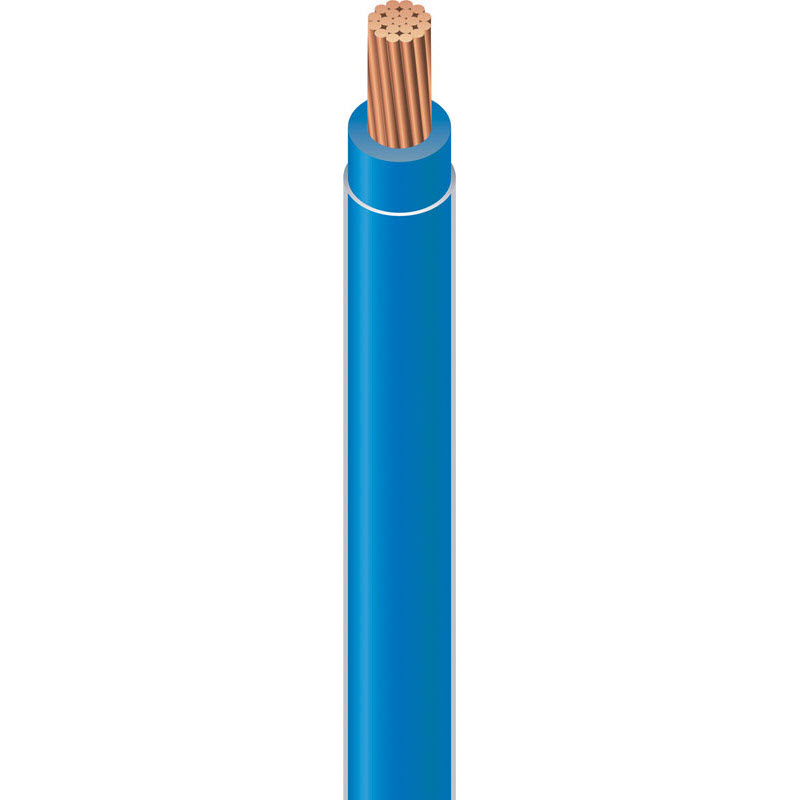

THHN Building Wire, 12 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Blue, 500 ft L - 1
Share Print

THHN Building Wire, 12 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Blue, 500 ft L

  • Model Number: 12BLU-STRX500
  • UPC: 032886229305
  • Store SKU: loading

  • THHN Building Wire, 12 AWG 1-Conductor Stranded Copper Wire, Sheathed Cable, PVC Insulation, Blue, 500 ft L

  • loading

          • loading
    Southwire® 12BLU-STRX500

    22967401 - SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 V. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.

    Type    :    THHN
    Wire Size    :    12 AWG
    Number of Conductors    :    1
    Stranded/Solid    :    Stranded
    Sheath Color    :    Blue
    Strands per Conductor    :    19
    Length    :    500 ft
    Conductor Material    :    Copper
    Conductor Insulation    :    Thermoplastic
    Sheath Material    :    Nylon
    Sheath Diameter    :    128 mil
    Voltage Rating    :    600 V
    Current Rating    :    20 A
    Operating Temperature    :    90 deg C
    • pdf Specification Sheet
    • linkVideo Link https://assets.southwire.com/ImConvServlet/imconv/6d67e54bd3a79cb860f96f2de8f979318a118d1c/preview?use=default&hybrisId=otmmHybrisPRD&assetDescr=THHN%20Product%20Video
