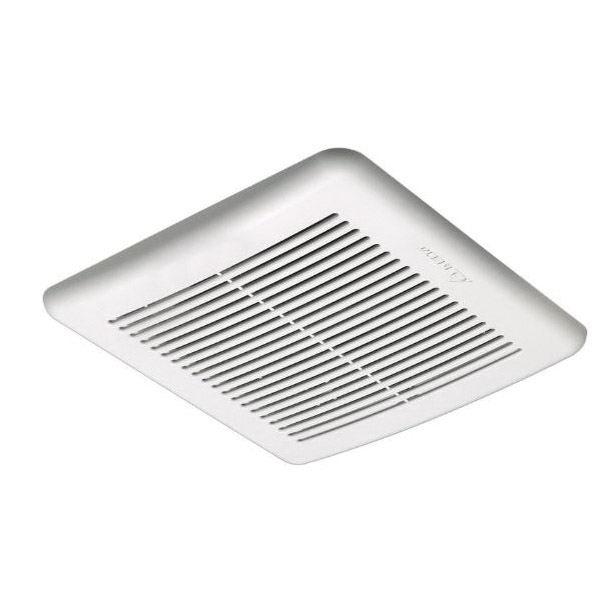

DELTA 80F
The Builder's choice for green construction. Ventilation fan shall be Delta Breez model 80F. Energy Star qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hr airflow rating of 80 cfm and loudness rating of 0.8 Sones at 0.1 in static pressure as certified by the Home Ventilating Institute (HVI), power consumption of 10.5 W with efficiency rating of 80 cfm/W at 0.1 in static pressure, fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub, shower enclosure when used with GFCI-protected branch circuit wiring.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.21 A |
| Wattage Rating | : | 10.5 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 80 cfm |
| Number of Speeds | : | 1 |
| Grille Length | : | 10-3/4 in |
| Grille Width | : | 10-3/4 in |
| Length | : | 8-1/4 in |
| Material | : | Steel |
| Width | : | 8 in |
| Color | : | White |
| Height | : | 5-3/4 in |
| Grille Material | : | ABS |
| Mounting Type | : | Ceiling, Wall |

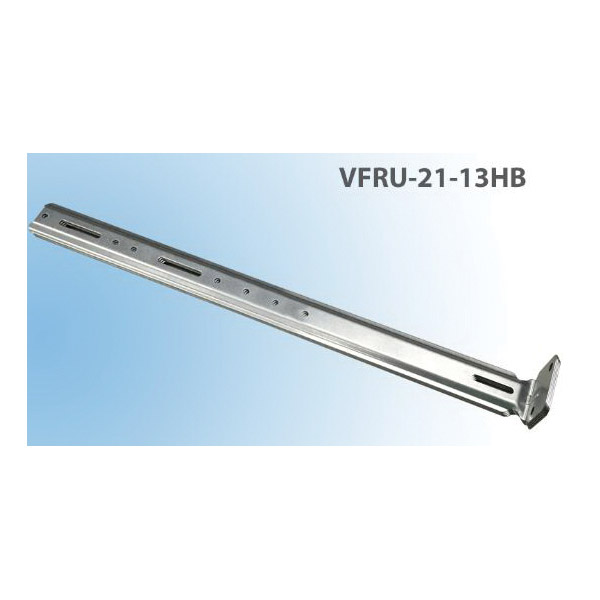

| Includes | : | Hanger Bars |
- Energy Star® qualified with innovative brushless DC motor technology
- Perfectly quiet operation at less than 0.8 sones
- UL approved for ceiling or wall mount installation
- Removable with permanently lubricated plug-in motor
- Built-in soft start function to increase bearings life
- Automatically powers off when impeller is locked abnormally
- Detachable 4 in Dia duct adapter
- Built-in backdraft damper
- Easy installation
Instruction/Installation Manual
