Jerry’s Home Improvement Center

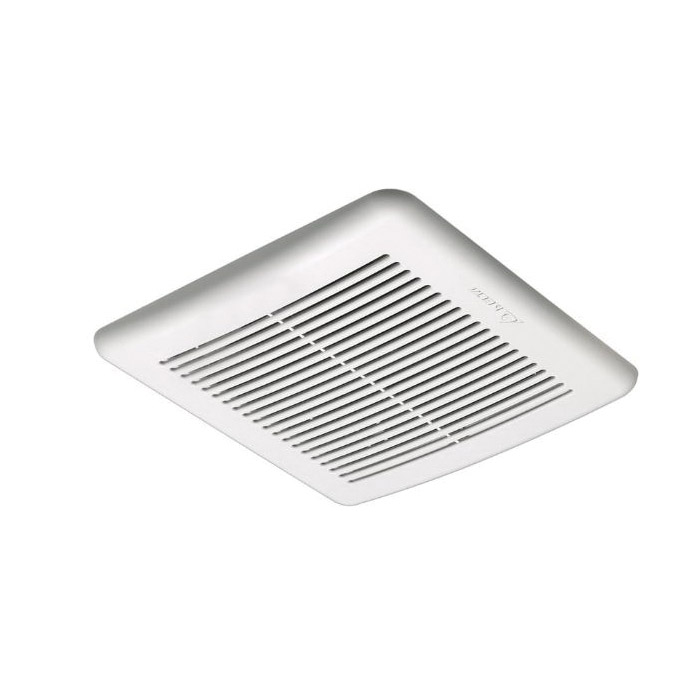

DELTA 100HS
The Builder's choice for green construction. Delta Breez model 100HS has been awarded Energy Star qualified with brushless DC motor engineered to run continuously for a minimum 70,000 hr airflow rating of 100 cfm and loudness rating of 1.4 sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI), power consumption of 12.6 Watts with efficiency rating of 7.9 cfm/W at 0.1 in static pressure, fan will feature LED indicator running light, motor lock protection and self-compensating motor speed for intended airflow ow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.24 A |
| Wattage Rating | : | 7.9 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 100 cfm |
| Number of Speeds | : | 1 |
| Grille Length | : | 10-3/4 in |
| Grille Width | : | 10-3/4 in |
| Length | : | 8-1/4 in |
| Material | : | Steel |
| Width | : | 8 in |
| Color | : | White |
| Height | : | 5-3/4 in |
| Grille Material | : | ABS |
| Mounting Type | : | Ceiling, Wall |
- Energy Star® qualified with innovative brushless DC motor technology
- Perfectly quiet operation at less than 1.4 sones, UL approved for ceiling and wall mount installation
- For humidity mode, the fan will automatically start when the humidity level in the room is above 60%
- Allows fan to operate in full speed mode or humidity control mode by manual switch

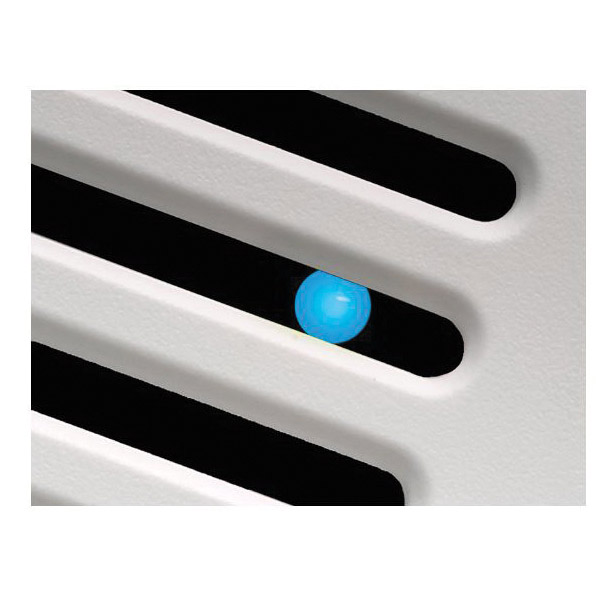

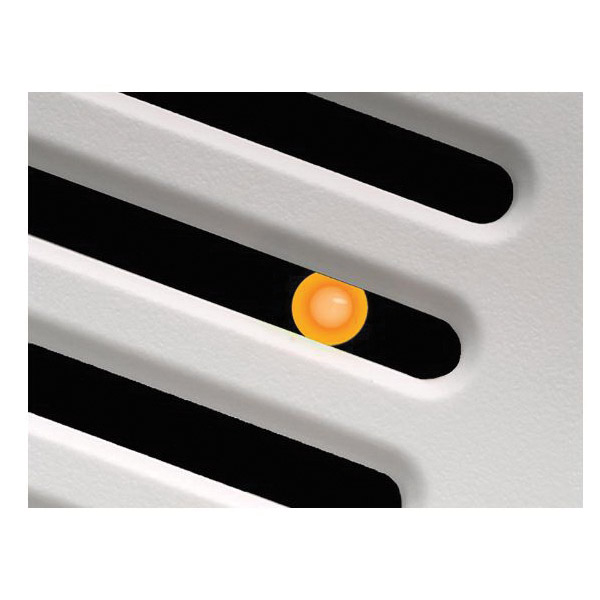

- Blue and amber LED indicator lights to show humidity control and full speed modes
- Removable with permanently lubricated plug-in motor
- Built-in soft start function to increase bearings life
- Automatically powers off when impeller is locked abnormally
- Detachable 4 in Dia duct adapter
- UL approved for ceiling and wall mount installation
Instruction/Installation Manual
