New Construction Housing, Lithonia Lighting, 4 in Incandescent

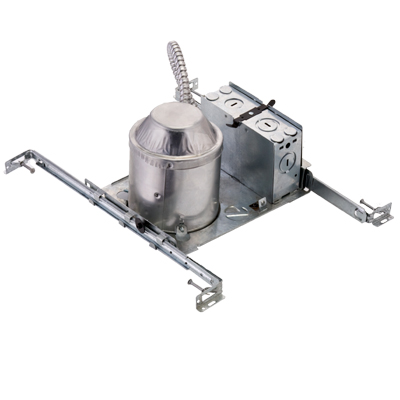

Recessed incandescent housings for 2 x 8 and 2 x 6 new construction applications. Approved for direct burial in insulation and all ceiling and wiring types. L3 air-tight, galvanized steel pan with aluminum can and junction box with four built-in clamps and ground wire. Rated for 90 deg C. Factory-installed captive bar hangers that span up to 24 oc and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

• Retaining clips riveted to top of reflector hold trim inside housing
• Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling

• Instruction/Installation Manual
• Specification Sheet
