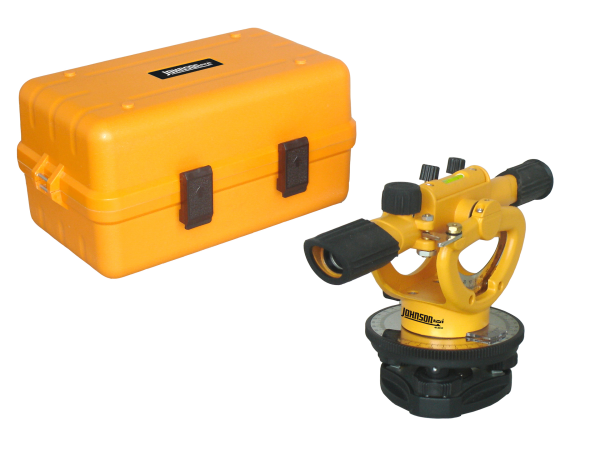

Builder's Transit Level, Johnson, Level 22X

Easy to assemble, easy to use and lightweight, this builder's transit level, which consists of a leveling vial attached to a telescope, is a must-have for your next outdoor jobsite. The leveling vial is accessible to +/- 45 deg on a vertical arc with graduations to single deg and reads by a Vernier scale to 15 min for maximum precision. Its horizontal tangent screw and vertical lock with tangent screw give you precise movement control so your readings are accurate every time. Johnson's builder's transit level is extremely user-friendly, its built-in sunshade gives you clear sighting and the large leveling screws are effortless to use and this level comes equipped with a hard-shell carrying case to keep your tool clean and safe when not in use. Builder's transit levels must be attached to a tripod and benefit from a grade rod.

• Horizontal circle graduated to single degrees and reads by Vernier direct to 15 min
• Vertical arc reads to deg 45-0-45
• Horizontal tangent screw and vertical lock and tangent screw for precise movement control
• Built-in sunshade, for clear sighting
• Top mounted leveling vial, for effortless viewing
• Large leveling screws easy to turn

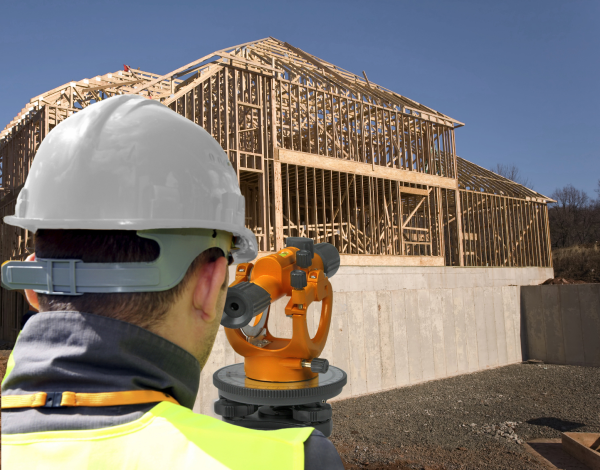

• Johnson's builder's transit level is a truly versatile tool for the construction field to set up level points and to check elevations
• It is an optical instrument used mainly in surveying and building but is also useful for transferring, setting or measuring horizontal levels

• Owners/User Manual
