Broan RB110
Broan ULTRA PRO™ series fans deliver everything you wished for in a bath fan - premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy-efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards. At 110 cfm, the RB110 provides powerful operation at a quiet level of just 0.6 sones.
| Voltage Rating | : | 120 V |
| Current Rating | : | 0.3 A |
| Wattage Rating | : | 29.8 W |
| Frequency Rating | : | 60 Hz |
| Air Flow Rate | : | 110 cfm |
| Grille Length | : | 13-3/4 in |
| Grille Width | : | 13 in |
| Length | : | 11-3/8 in |
| Material | : | Steel |
| Width | : | 10-1/2 in |
| Color | : | White |
| Height | : | 7-5/8 in |
| Grille Material | : | Polymer |
| Mounting Type | : | Ceiling |
- 110 cfm, effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.8 sones for ultra quiet performance, you might not notice it's on
- ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
- Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation

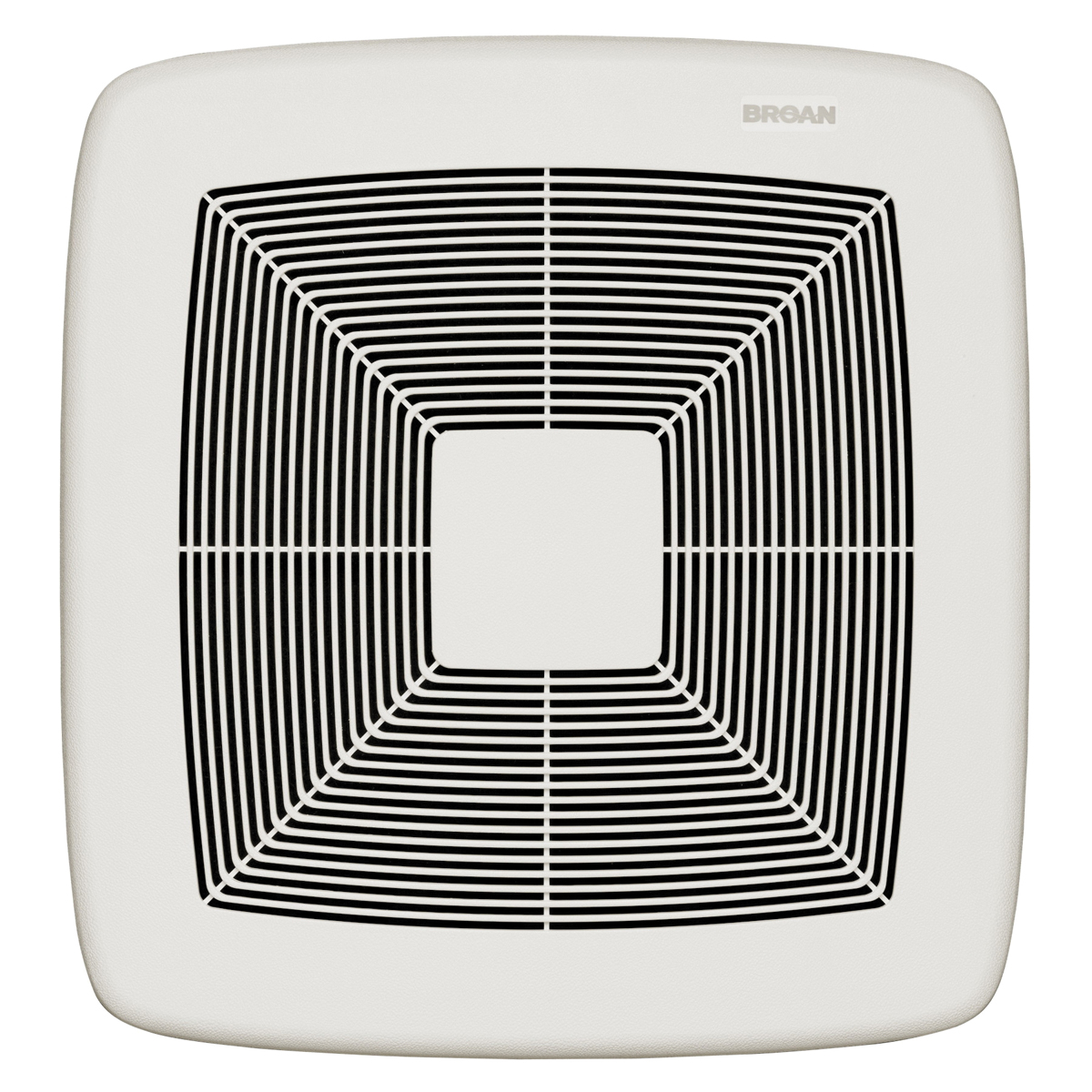

- Paintable white grilles blends in with any decor
- UL listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- Powerful enough for rooms up to 100 sq-ft
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion-resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Instruction/Installation Manual
Video Link
